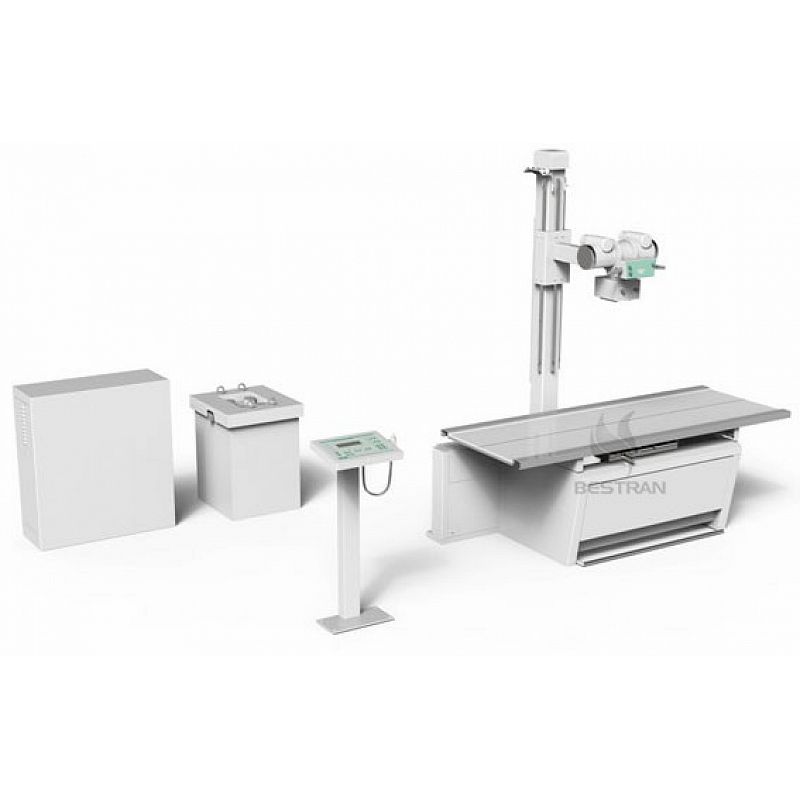

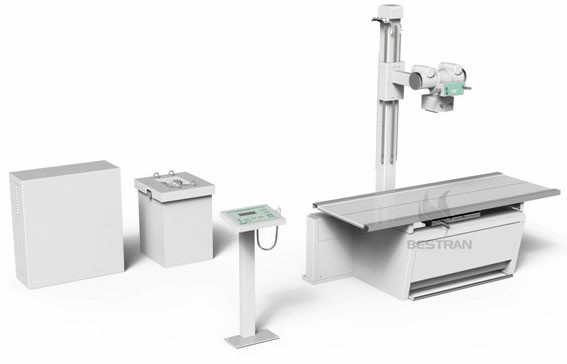

BT-XR06 X-ray Radiography System (500mA)

Features:

The console applies LCD display photograph term

The console control the expose time by MCU internal clock, make the expose time accurate

Adopt microcomputer monitoring start-up and operation

Adopt mA,KV,s three parameters free matching work method

The low-voltage power supply was isolated in this machine

Hand-switch control module

External interlock device interface

This machine has temperature control switch to protect the x-ray tube

Basic Configuration:

1. 500mA control console one unit

2. high-voltage X-ray generator one set

3. PLD5000B radiography table one set

4. X-ray tube components one unit

5. Beam limiting device one set

6. High-voltage cable one unit

7. Chest stand (with imported filter grids) Optional

radiography table radiography table Structural performance:

Table size	2000×760mm
Table height	≤700mm
Table transverse movement	≥220mm
Table longitudinal movement	≥900mm
Grids cassette holder movement	≥500mm
X-ray tube assembly center rotation	±90°
Rotation of the pillar	4×90°
SID	500-1280mm
Pillar movement along the table	≥1300mm
Limited time of analog light beam opening	About 15s
Film size	5"×7"-14"×17"
Chest stand up and down movement	480~1460mm

High-voltage X-ray generator Specification:

Item	content
Output power	40kW(max) 20kW(min)
X-ray tube	Rotary anode, dual-focus, large focus: 2.0mm, small focus: 1.0mm, Tube thermal capacity: 140kJ
Tube current	32~500mA
Tube voltage	44kV-125kV
Expose time	0.020s~4.000s
Radiography grids	Grid density:103L/INCH;Grid ratio:10:1;Focusing distance:120cm;Stationary type:18"×18"
Power supply	380V±38V 50Hz, Capacity: ≥40kVA
