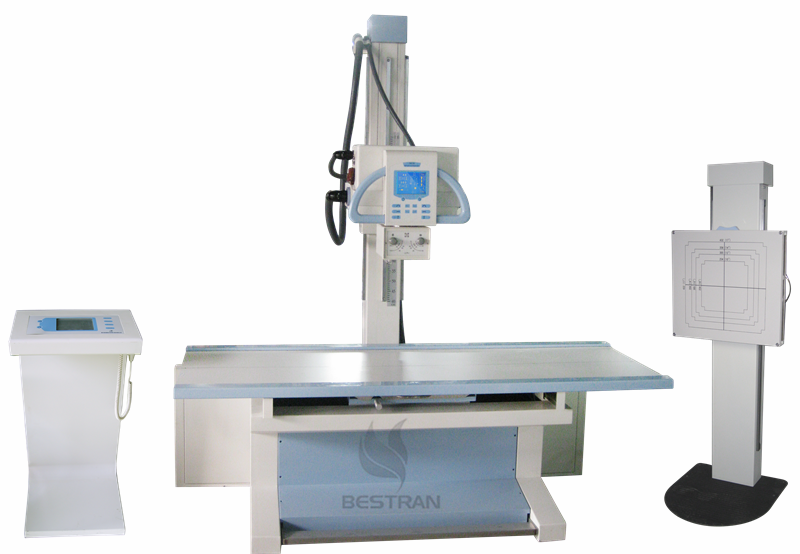

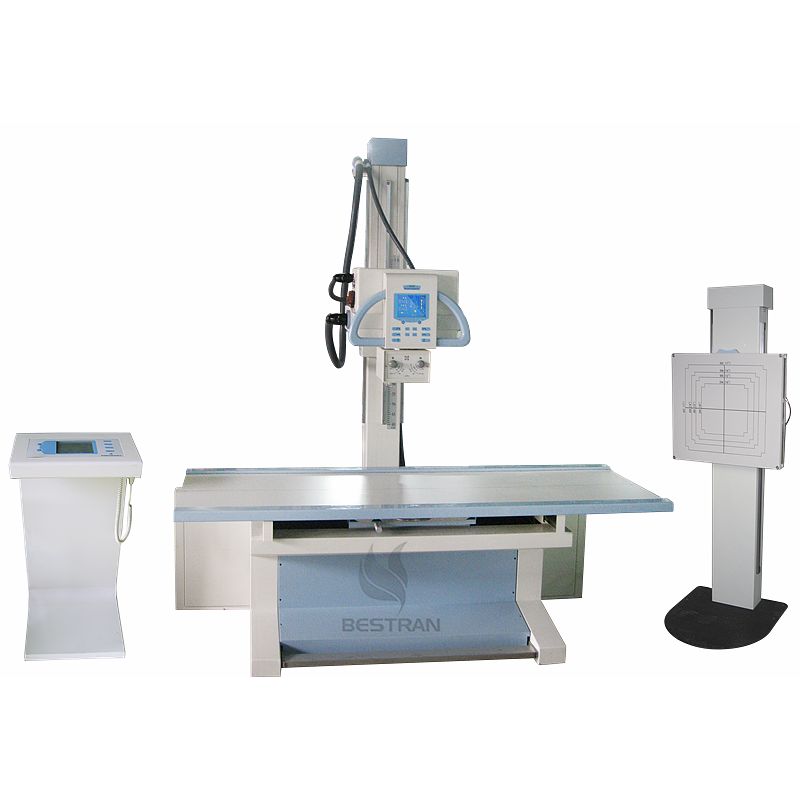

15KW X-ray Radiograph System
BT-XR01 High Frequency X-ray Radiograph System
Specification:
Item |
content |
Output power |
15kW |
Main inverter frequency |
40kHz |
X-ray tube |
Rotary anode, dual-focus, large focus: 0.6mm, small focus: 0.3mm, Anode thermal capacity:212kJ (300kHu) Tube thermal capacity: 900kJ (1200kHu) |
Rotary anode speed |
3000rpm |
Tube current |
200mA |
Tube voltage |
40kV-125kV |
mAs |
0.4-360mAs |
Table radiography grids |
Grid density:103L/INCH;Grid ratio:10:1;Focusing distance:120cm;Stationary type:15"×18" |
Chest stand radiography grids |
Grid density:103L/INCH;Grid ratio:10:1;Focusing distance:150cm;Stationary type:18"×18" |
Power supply |
220V 50Hz, Capacity: ≥20kVA |
Operation method |
close-table graphic program controlled LCD touchable screen operation; wireless remote control exposure |
Basic Configuration:
1, new integral radiography table (with pillar) one unit
2, combined high-frequency high-voltage X-ray generator one set
3, Colored LCD touch screen control box one unit
4, Control system (with software) one set
5, Chest stand (with imported filter grids) one unit
