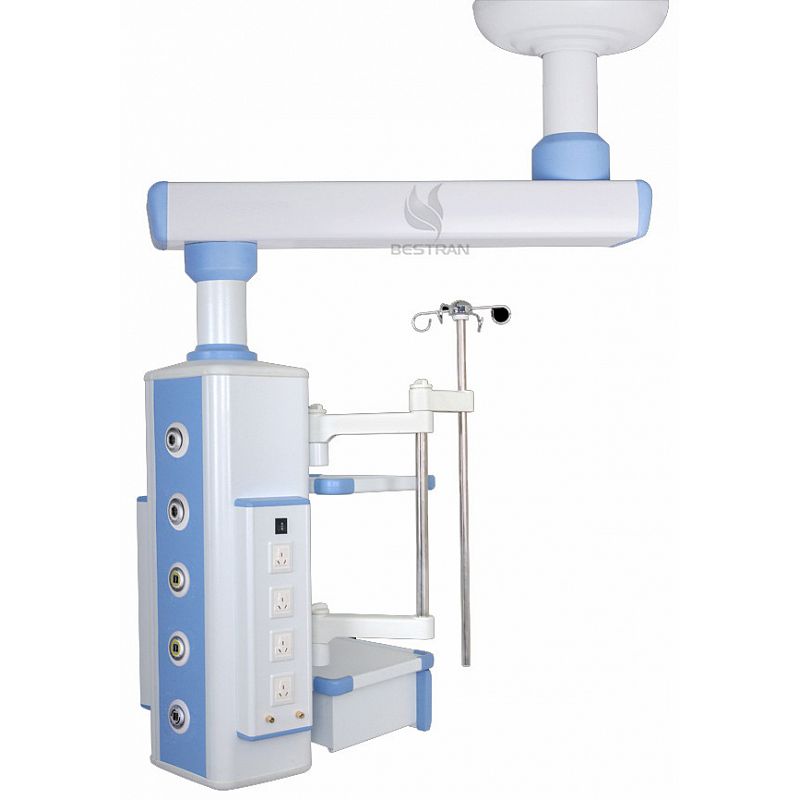

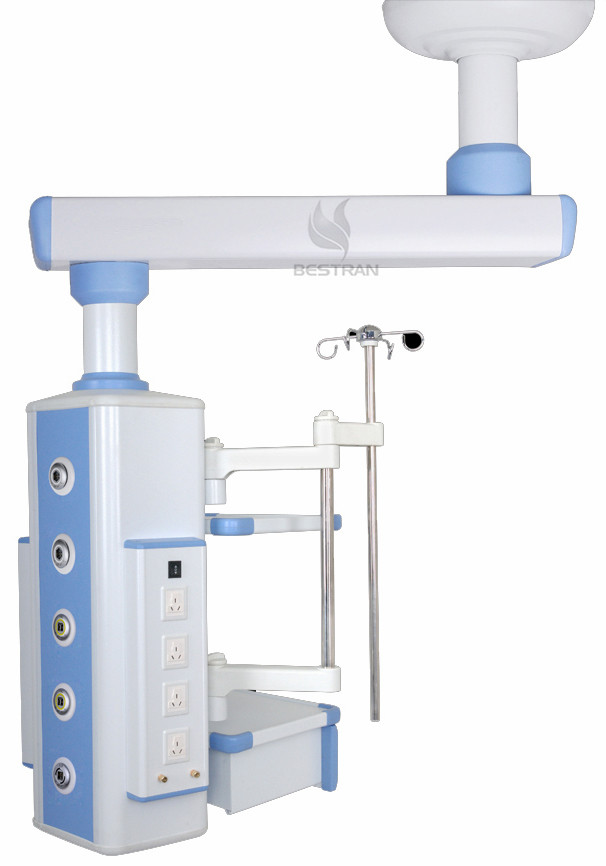

Single arm surgical pendant
Single Arm Electric Surgical Pendant, vertical lifting
BT-3600A
1)The activity range of Horizontal arm :( radius) 1000mm, horizontal arm and functional box can be simultaneously rotated, each horizontal rotation angle 340 °;
2)Functional box vertical lifting stroke 250 ~ 600mm. Motor power 100W;
3)The rotary joint has oxygen balloon expandable isolation brakes, just hold down the brake button on the device to easily rotate, release the button to secure the device no drift;
4)The gas terminal interface standard configuration: oxygen 2pcs, suction 2pcs;
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
5)Instrument platform: two layers (height adjustable); rounded bumper design, each platform can load 20kg;
6)weight loading: 150kg;
7)Power supply: AC220V, 50HZ; AC110V, 60HZ
8)Electrical outlet: 8 pcs (220V / 10A);
9)Potential ground terminal: 2pcs;
10)The network interface: RJ45 1pc;
11)Drawer: 1pc;
12)Syringe pump rack 1pc, infusion pump rack 1pc;
13)The main material: high-strength aluminum alloy;
14)The surface treatment using imported high-voltage electrostatic powder spray;
15)Ceiling-mounted, high stability
