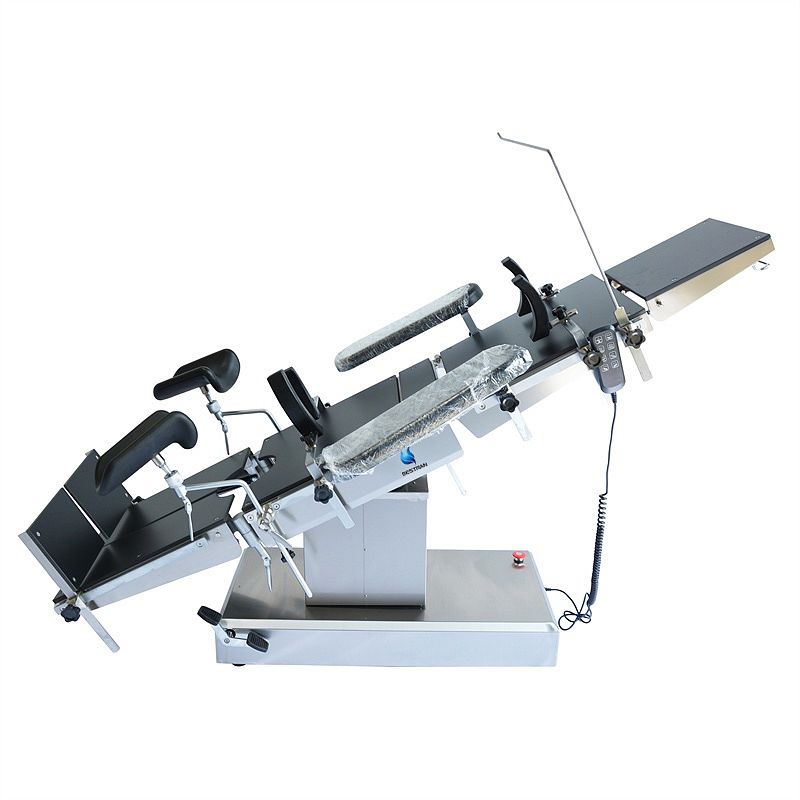

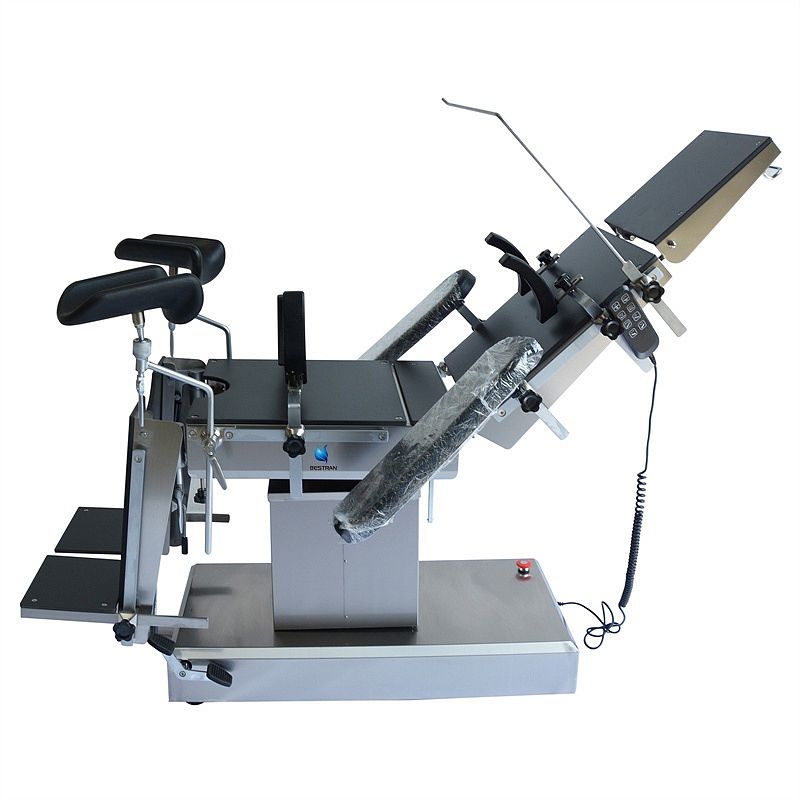

Electric-motor operating table

BT-RA015

Main feature:

with emergency power,suitable for x-ray; Motors control: height up and down,Reversed Tendelenburg &  Trendelenburg, Lateral tilt, backrest up and down

Overall Dimension of table: 2100*500*700-950mm

Range of movements：

Reversed Tendelenburg≥25°

Trendelenburg≥25°

Lateral tilt≥≥20°

Head Section Raised from the horizontal≥55°

Head Section lowered from the horizontal≥90°

Leg Section Lowered from the horizontal≥90°

Leg Section opened≥90°

Back Section Raised from the horizonta≥80°

Back Section lowered from the horizontal≥≥20°

Kidney Bridge Elevated≥120mm

Safe Working Load 135kg

Accessories:Arm support/Kidney bridge/Leg support/Mattress/Anesthetic screen frame/ Bed body/ Remote control

Structure：

1.Electric Operating Table is made up of the table top, the main part, the electric controlling part and the accessories, etc. It’s raising, lowering, lateral tilt, trendelenburg and reversed trendelenburg movements ,back section bending are all drived by the motors.

2.The table top is made up of head section, back section, seat section, leg section and kidney bridge. The head section can be disassembled. The head section can be raised or lowered from the horizontal. The leg section can be lowered from the horizontal and opened. The back section can be raised or lowered from the horizontal. Table top is made of engineering plasties, thus X-ray examination of can be carried out on it.

3.The main part includes rotary frame, lateral tilt arrangements, trendelenburg and reversed trendelenburg arrangements, ascending and descending arrangements and the base. The lateral tilt arrangements trendelenburg and reversed trendelenburg arrangements can drive the rotary frams to carry out the lateral tilt, trendelenburg and reversed trendelenburg movements. Ascending and descending arrangements can drive the operating table to ascend or descend.

4.The electric controlling part is made up of steady power supple, controlling push button container. The power supply of the operating table is connect with alternating current (220V AC), then change it into direct current (24V DC) to drive the motor starter to word.

5.Electric operating table mattresses are produced by the high-density sponge covered leatherette materials or overall bubble forming, with antistatic properties.

6.This product is equipped with emergency power supply, and emergency power is lead-acid battery which you can automatically charge, When net power is off , the emergency power source can automatically jump to working condition. Emergency power has charging light. When the green light is bright, it means it is charging. After the power is sufficient, light turns off.
