Manual Operating Table

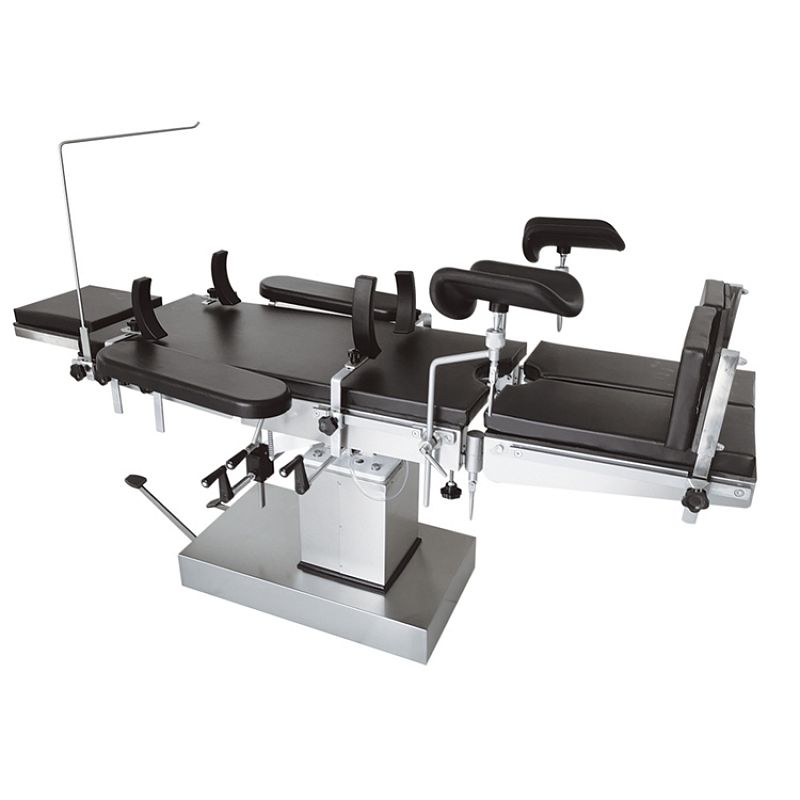

Univesal Manual Operating Table,Side-controlled

BT-RA018


General description

1.This operating table is suitable for surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as for gynaecological, obstetrical, urological, otorhino laryngological and cranial operations. It can be raised , lowered, Reversed Trendelenburg, Trendelenburg, Lateral Tilt.Leg sedtion can be rotated , opened, disassembled and adjusted easily.

 2.It is most adapt to the urological operation.The table top made of highstrength plastic can move backwards and forwards. X-ray examination can be carried out on it.

It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both side.Chassis inside outside cover of this table are stainless steel.



Main feature:

Suitable for x-ray,longitudinal movement 300mm,seperate leg parts,height adjustable by hydraulic pump,backrest and footrest controlled by gas spring


Specification:

Dimensions of Table: 2050*500*750-1000mm

Range of Movements

Max. Reversed Trendelenburg:≥25°

Max. Trendelenburg: ≥20°

Max. Lateral Tilt: ≥18°

Adjustments of  Sections:

Head Rest-raised from the horizontal: ≥45°

Head Rest-lowered from the horizontal: ≥90°

Back Section-raised from the horizontal:up≥60°,down≥15°

Leg Section-lowered from the horizontal: ≥90°

Leg Section-opened: ≥90°

Backward and Forward movements:≥400mm

Kidney Bridge Elevation: ≥120mm

Foot Rest-can be kept horizontally or perpendicularly to the Leg Section.

Safe working load: 135kg
