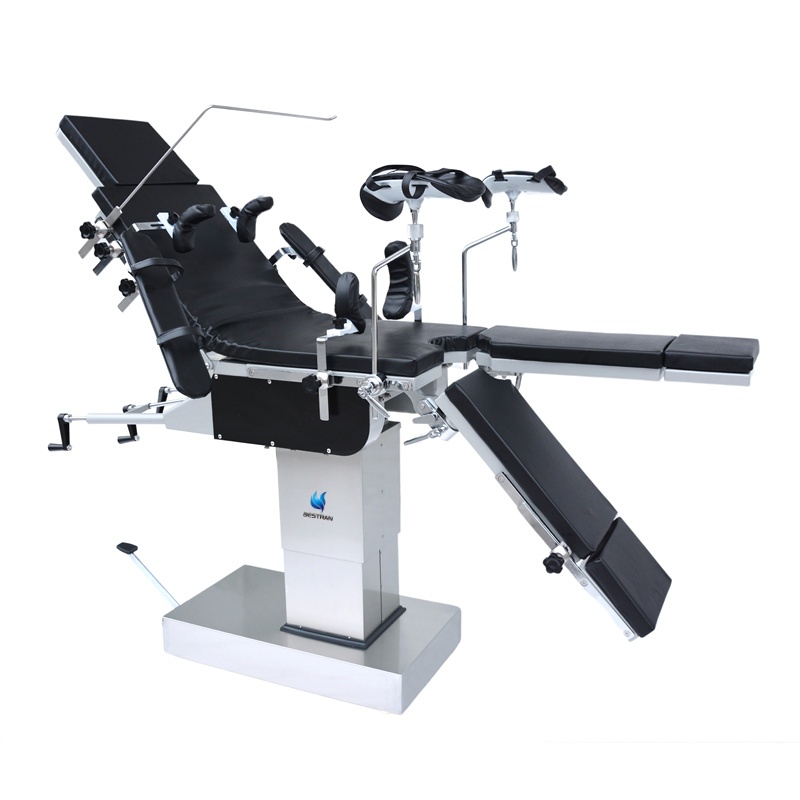

Manual Operating Table

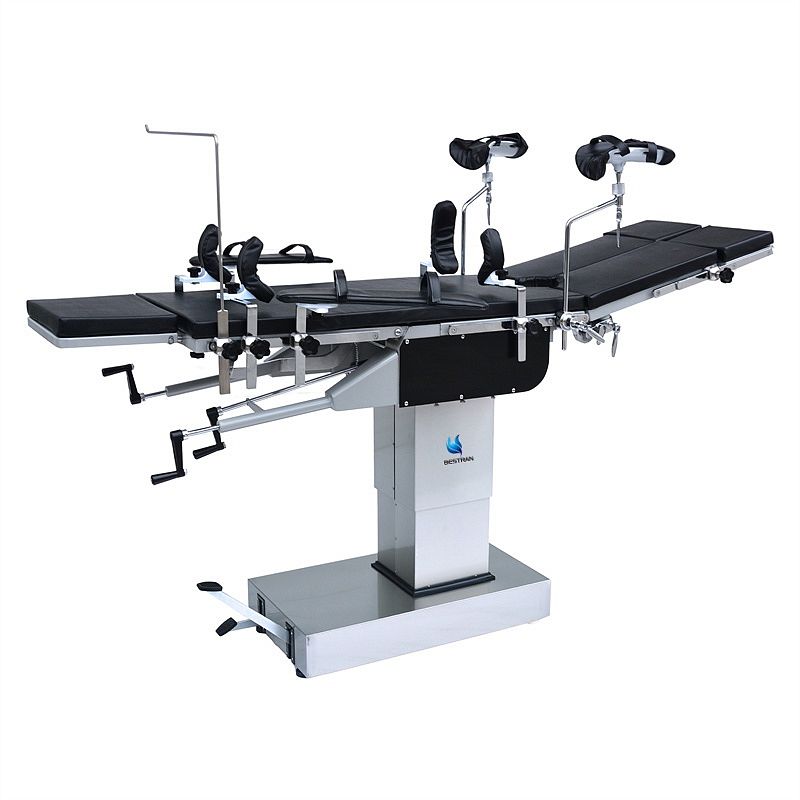

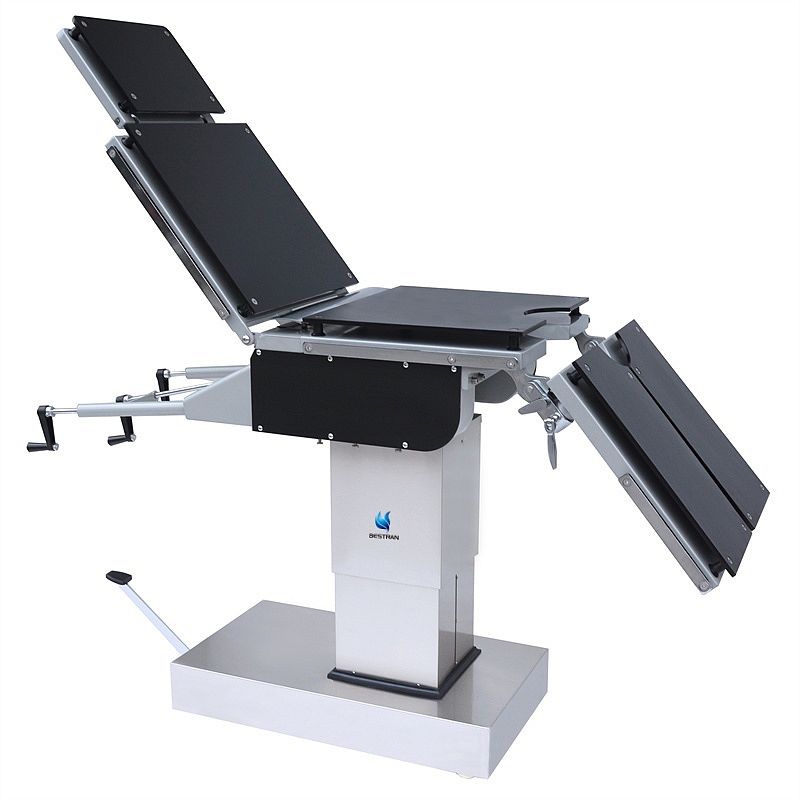

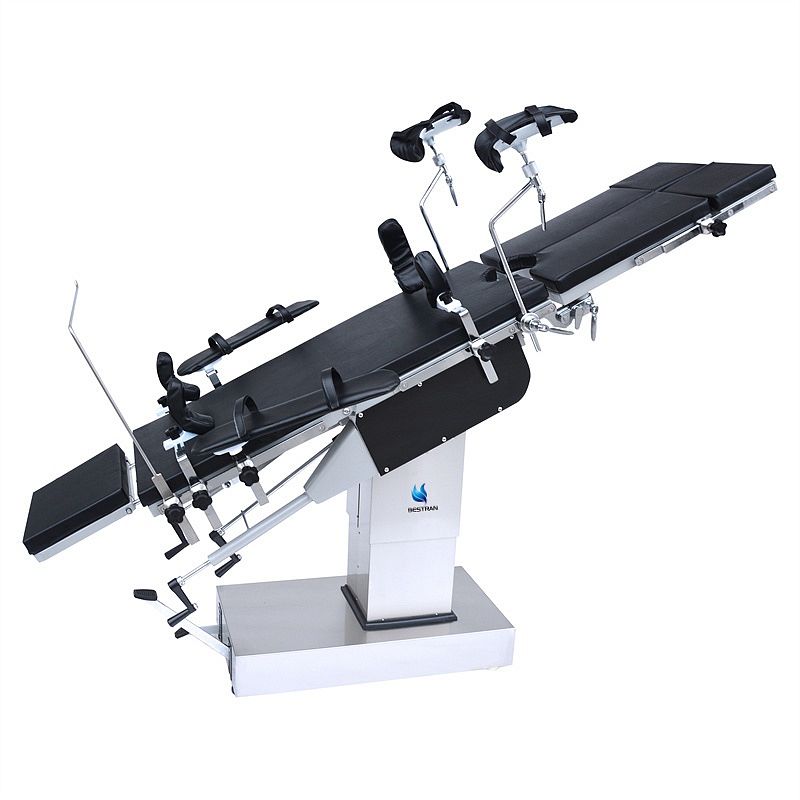

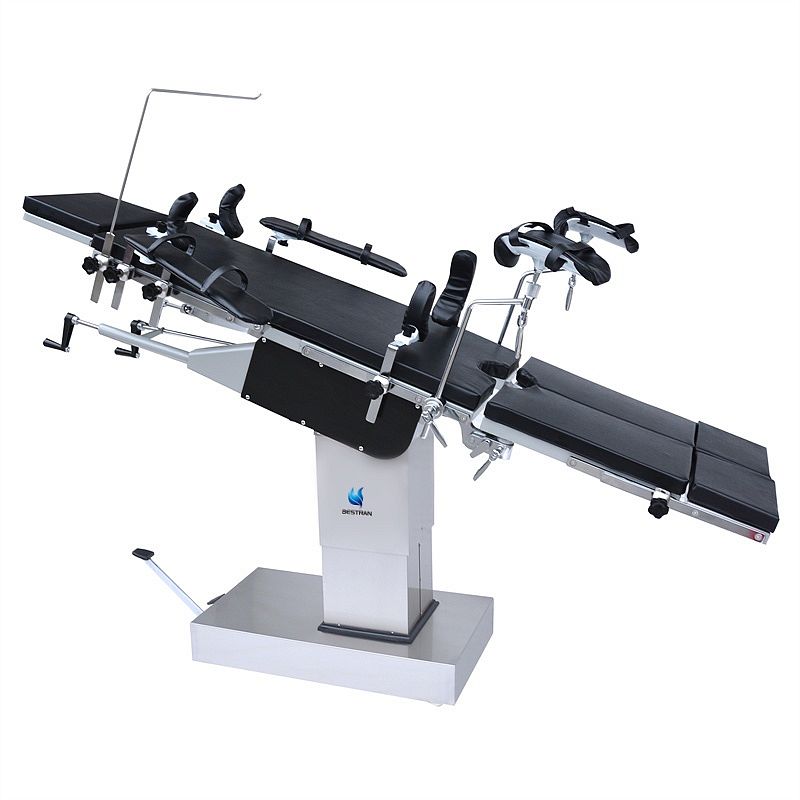

Univesal Manual Operating Table,head-controlled

BT-RA019

Main feature:

Suitable for x-ray,304 stainless steel base cover and column cover,double-layer table top, sperate leg parts


Dimensions of Table:2150*520*720-970mm

Range of Movements:

Max. Reversed Trendelenburg:≥20°

Max. Trendelenburg≥30°

Max. Lateral Tilt≥20°

Adjustments of  Sections :

Head Rest-raised from the horizontal≥45°

Head Rest-lowered from the horizontal≥90°

Back Section-raised from the horizontal≥80°

Back Section-lowered from the horizontal≥10°

Kidney Bridge Elevation≥120mm

Leg Section-lowered from the horizonta≥90°

Leg Section-opened≥50°

Foot Rest-can be kept horizontally or perpendicularly to the Leg Section.

Safe working load:150kg



Main Usage & Structure:

1. This table are compactly designed and sturdily constructed, and may be raised or lowered hydraulically by means of an oil pump. They are suitable for surgical procedures of the head, neck, thorax, abdomen, perineum and extremities as well as for gynaecological, obstetrical, urological and oto-rhino-laryngological operations. Various positions can be quickly and safely adjusted.

2.The controlling devices, hand wheels and crank handles are mounted at the head-end of the table. All positions of the table are controlled entirely from the head-end. The table is double dimensions. X-ray examination can be available during the operation.Chassis inside  outside cover are stainless steel .
