Item

Content

Technical parameter

Power supply

Voltage

380V±38V

Frequency

50Hz±1Hz

Capacity

≥63kVA

internal resistor

≤0.17Ω

High-frequency generator

(Sedecal)

Power Output

50KW

Inverter frequency

60kHz

Photography

Tube Voltage

40kV—150kV

Tube Current

10mA—640mA

Exposure time

1ms—10000ms

Fluoroscopy

Tube Voltage

40kV—125kV

Tube Current

0.5mA—6mA continuous regulation

Exposure time

0-10mins

Digital Controlled X-ray Tube

（Toshiba, Japanese）

Tube Focus

1.2mm /0.6mm

Input Power

Large focus:50kW

Small focus: 20kW

Anode Thermal capacity

210KJ

Tube Thermal capacity

900KJ

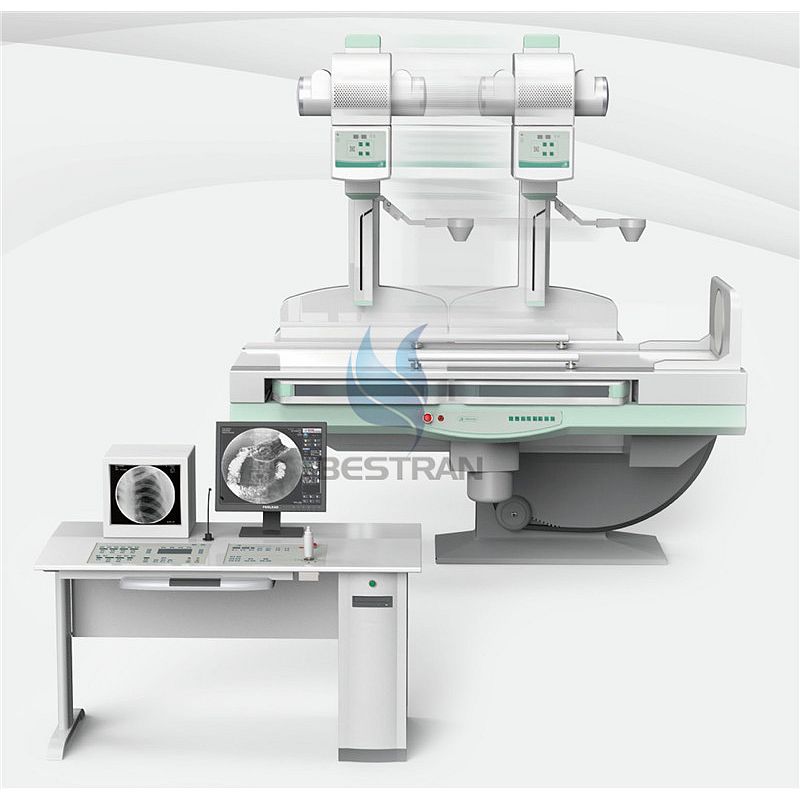

Micro-computer control digital tube remote diagnostic table

Material of the tabletop

 high strength, low absorb carbon fiber

Rotation of the table

90°~0°~-25°

Transverse travel of table

±110mm

Longitudinal travel of the photography holder and film spot device

≥720mm

SID

1100-1500 mm

Rotating foot plate

±360° rotation

Dividing method for spot film

Full film

Half dividing

Three parts dividing

Four parts dividing

Control method for diagnostic table

Remote

Table control

Soft starting and stopping

Beam limiter

Electric Multi-leaf

Fixed bucky device for table

Grid density: 103L/INCH

Grid ratio: 10:1

focusing distance: 120cm

fixed type: 15″×18″

Digital Image Processing System

Image Intensifier

THALES (23XZ4)

CCD camera

0.4 Mega pixel

Monitor (Optional)

Medical high definition monitor

Horizontal central resolution atio :1000 lines

Fringe: 800 lines

Video bandwidth: 12.5MHz

Gray level: 10

Image Processing Software

LIH, Mega pixel image output, 5 levels noise reduction, 3 levels gamma correction, Sharpness correction, Positive and negative image, Vertical &horizontal Image mirror flip, Full-screen or partial image window width &window position adjustment,
Can save more than 10,000 image without power supply, Graphical report, Dicom 3.0

Display

LCD Monitor
