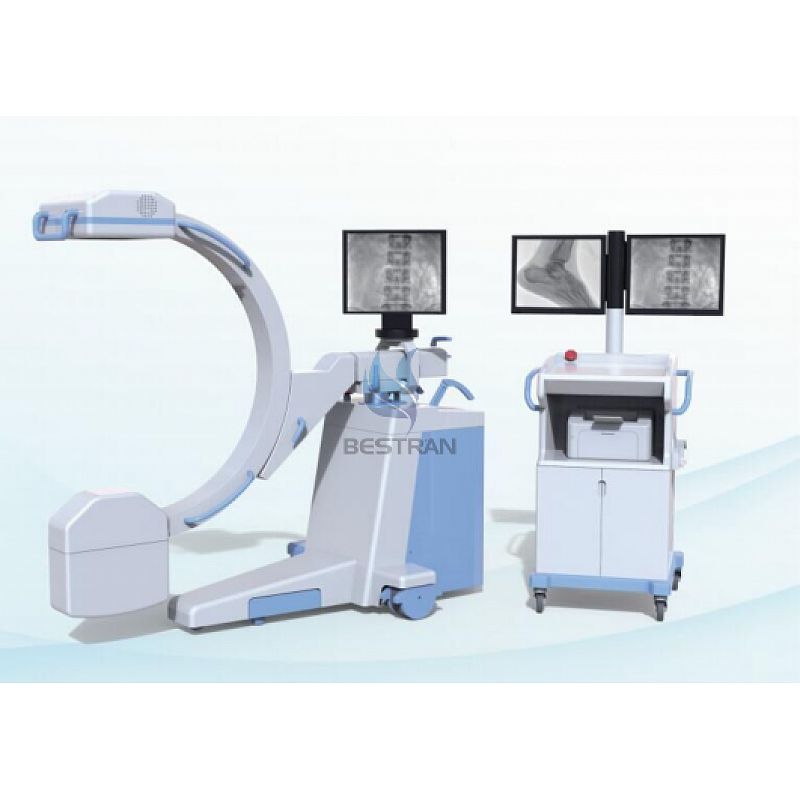

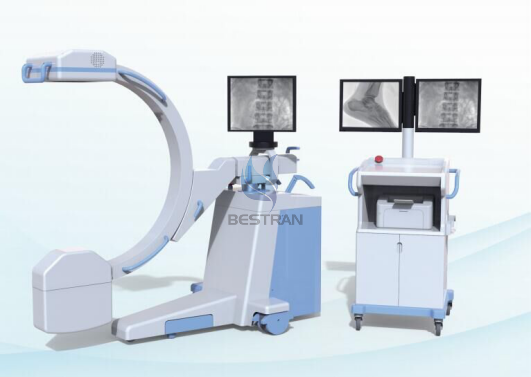

Mobile Digital FPD C arm system
High Frequency Mobile FPD Carm System (5.0 kW, 100mA)
Model:BT-XC06
I. Usage:
Orthopaedics: osteopathy, diaplasis, nailing
Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.
II. Features
1. Using the latest dynamic flat panel detector (large field of view, high resolution, high dynamic range, low noise, no distortion, compact and lightweight).
2. 9’’ × 9’’ effective imaging area can meet various fluoroscopy clinical demands of common parts.
3. Image processing software is based on GPU, the real-time image processing platform. It’s a enhancement processing technology of image multi-resolution analysis, different parts of different image processing, and meeting the diverse demands of customers accurately.
4. Gray scale LCD display is for option with higher resolution and excellent image quality.
5. Dynamic flat panel detector connected with Gigabit network lets image acquisition transport security and fast. Dicom3.0 is easy to join PACS, transport and print.
6. Self- development high-frequency and high-voltage generator achieved high-frequency pulse fluoroscopy to reduce the dose.
7. Human-graphic touch screen control interface can control dose intelligently and reduce the cumbersome operation. It’s suitable for surgery demand.
8. According to clinical demands, we can preset multi-site, multi-position, multi-body parameters of adult, children and other human characteristics. It’s easy to operate.
9. ABS
10. Multiple automatic protection and fault code prompt function make maintenance more convenient.
11. New C-arm main frame is lightweight and smart for various of surgical demands.
III. Configuration
|
No. |
Item |
Quantity |
|
1 |
Main frame of C-arm |
1 |
|
2 |
X-ray generator and high frequency inverted power supply |
1 |
|
3 |
19’’ LCD monitor |
3 |
|
4 |
9’’ Dynamic Flat Panel Detector |
1 |
|
5 |
Digital Acquisition and Processing workstation |
1 |
|
6 |
Imported minigroove grid |
1 |
|
7 |
Electric adjustable collimator |
1 |
|
8 |
Hand controller |
1 |
|
9 |
Red light cross localization |
1 |
IV. Performance and Parameter
|
Category |
Item |
Content |
|
Fluoroscopy/ Photography |
High Frequency Inverter Power Supply |
Output Power: 5kW Inverter Frequency: 110kHz |
|
Continues Fluoroscopy (Automatic, Manual) |
Tube Voltage: 40kV～120kV Tube Current:0.3mA～4mA ABS |
|
|
Pulse Fluoroscopy |
Tube Voltage:40kV～120kV Tube Current:0.3mA～30mA
|
|
|
Photography Tube Voltage, mA, mAs
|
40 kV-120 kV 25-100mA 1-280 mAs |
|
|
X-ray Tube |
X-ray Tube Special for High Frequency |
Fixed anode Dual-focus: 0.3/ 1.5mm Angle: 15° Anode Thermal Capacity: 35kJ X-ray tube Thermal Capacity: 650kJ |
|
Imaging System |
Dynamic Flat panel detector |
Detector Type: Amorphous Silicon Detector scintillator type: cesium iodide Size: 9’’ *9’’ (about 21cm × 21cm)
Pixel: 1344x1344 |
|
Monitor |
19’’ LCD monitor *3 |
|
|
Work Station Software |
1) Registration: registration, Save, inquiry, Worklist
|
|
|
Structural performance |
Directive wheel |
Direction wheel 360° rotation Main wheel ±90° rotation |
|
C-arm (Counter balance) |
Electric Ascending & Descending of pillar movement: 400mm
Forward and Backward Movement: 200mm Slip on orbit: 135°
|
