HF Mobile Digital C-arm System (Flat Panel Detector)

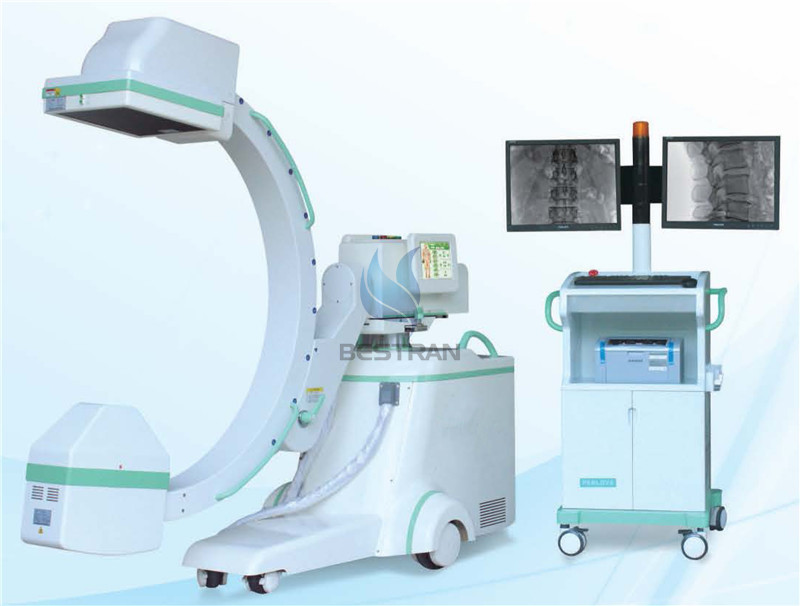

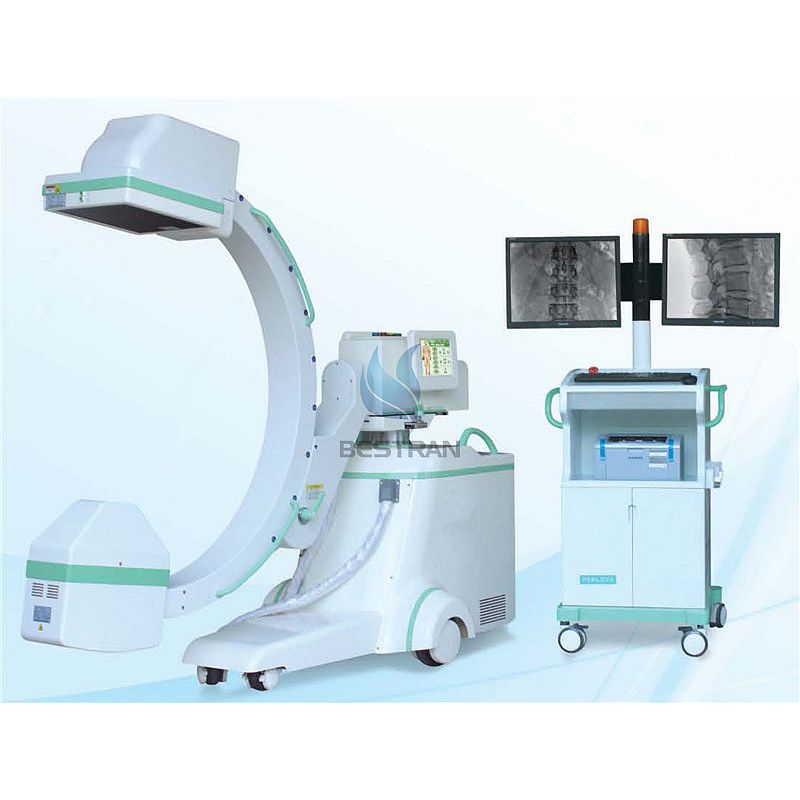

BT-XC11 HF Mobile Digital C-arm System (Flat Panel Detector)
I. Application
This machine is widely applied in surgical department, orthopedic surgery, urinary surgery, Spinal surgery, abdominal surgery, Pain Management, Cardiology, Gastroenterology dept., gynae and operating room etc.
II. Configuration
|
No. |
Item |
Quantity |
|
1 |
Main frame of C-arm (Four-dimensional Motor driven) |
1 |
|
2 |
High frequency &voltage X-ray generator and High Frequency inverter power supply |
1 |
|
3 |
Flat panel detector |
1 |
|
4 |
Digital image Processing System |
1 |
|
5 |
21' 2M high definition Medical LCD Monitor |
2 |
|
6 |
Imported dense grain grids |
1 |
|
7 |
Electrical adjustable collimator |
1 |
|
8 |
Human Graphic LCD Touch Screen |
2 |
|
9 |
Hand controller for parameters |
1 |
|
10 |
Hand controller for mechanical movement |
2 |
|
11 |
Foot Brake |
2 |
|
12 |
Image transport and processing software |
1 |
III. Specification
|
Category |
Item |
Main Contents |
|
Electrical Performance |
X-ray Generator |
Output Power:25kW Inverter Frequency:60kHz |
|
Continuous Fluoroscopy (Automatic/ Manual) |
Tube Voltage:40kV～125kV continuous adjustment |
|
|
Tube Current:0.3mA～5mA continuous adjustment |
||
|
Intensifying Fluoroscopy (Automatic/ Manual) |
Tube Voltage:40kV～125kV continuous adjustment Tube Current:0.3mA～10mA continuous adjustment |
|
|
Pulse Fluoroscopy |
Tube Voltage:40kV～125kV continuous adjustment Tube Current:0.3mA～100mA continuous adjustment Pulse Frequency:0.1-12.5 frame/s continuous adjustment |
|
|
Radiography |
40kV～125kV 70-200mA 0.1-320mAs |
|
|
X-ray Tube |
Rotary Anode Focus |
0.6/1.3mm |
|
Anode Thermal Capacity |
80kJ |
|
|
Tube Thermal Capacity |
1000kJ |
|
|
Image System |
Flat panel detector |
Model: Thales Pixium Surgical 2630 |
|
Size: 28.7 *26.5cm |
||
|
Pixel: 1560*1440 |
||
|
Pixel size: 184um |
||
|
Output grayscale: 16bit |
||
|
Monitor |
21' 2M high definition Medical LCD Monitor |
|
|
Digital Image Processing System |
Image acquisition module: Achieve a single frame, sequence image acquisition, ultra-high-speed Ethernet pass - real-time transmission |
|
|
The image processing module: Images have been collected or stored in the module of image processing: tagging, zoom, measurement, sub- window display, Continuous play. 90 Rotation , horizontal mirror , vertical mirror function |
||
|
The report module: Modify report templates provide a variety of content, user-friendly report writing, report printing function |
||
|
Film print module: Follow Dicom Medical film typesetting and printing capabilities |
||
|
Structure Performance |
Direction Wheel Main Wheel |
Direction wheel 360°rotation Main wheel ±90°rotation |
|
C-arm |
Motorized rotation around horizontal axis: ±180° |
|
|
Motorized slip on orbit: 120° |
||
|
Rotation around vertical axis: ±15 |
||
|
Motorized forward and backward movement: 200mm |
||
|
Motorized ascending and descending of pillar: 400mm |
||
|
SID:955-1155 mm Open:744-944 mm Arc depth:826 mm |
||
|
Power supply |
220V ± 20V, 50Hz ± 1Hz |
|
