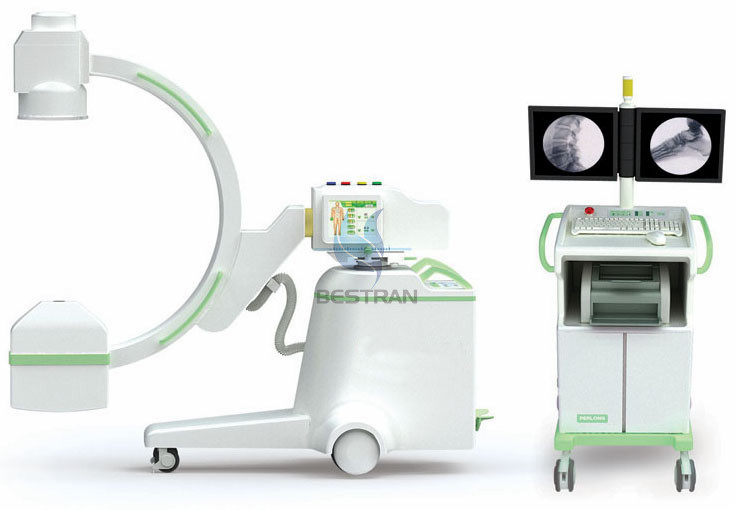

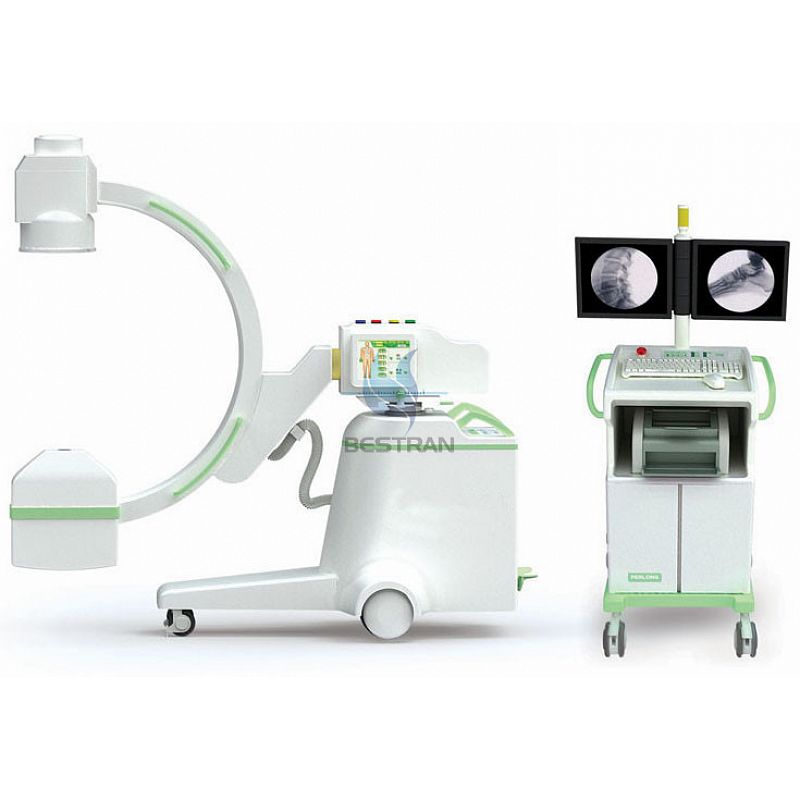

BT-XC07 High Frequency Mobile X-ray C-arm System

1. Usage:

BT-XC07 is wildly used in Department of Orthopedics, Department of General Surgery, orthopedic surgery department, Urology Surgery, Spine Surgery, Abdominal Surgery, Department of Pain Treatment, Cardiology, Gastroenterology, Gynecology, Operating Room, etc.

2. Features:
1 High-power, micro-focus and high-frequency generator, optimize digital images.

2 Intelligent control of exposure, achieve low radiation dose.

3 Multiple operating modes to meet various clinical needs.

4 Muti-leaf and vertical light shadow control, effectively, reduces soft X-ray ,dramatically reducing the skin dose.

5 Imported famous brand image intensifier and all-digital CCD camera providing high-quality and high-resolution images.

6 Dual high-resolution LCD monitors assure image quality effect.

7 The powerful digital graphic workstation standard configuration DICOM 3.0 interfaces and network perfect butt, support Worklist registration and manual registration dual registration modes

.8 Workstation has the high-capacity digital storage function. Fluoroscopy and digital spot film(DSI) are all stored in digital format without any loss. It has powerful processing capabilities like edge enhancement, multiple images, gamma correction，movie playback, window width/level, experts template mode, burn CD, etc.

9 Four-D electric motion control, accurate positioning, flexible and comfortable control. Super large frame design, provides lager diagnostic and watch spaces and more comfortable surgical operation environment. New design and new ideas brings superior experience.

10 Two panels of human graphical LCD touch screen provide intelligent ,fast and convenient operation. Dual motion control system and double foot brake for expose make this machine greatly meet the demands of clinical operations.

3 Configurations

1. Four-D electric super-power same centre mobile C-arm main frame                  1 set

2. High-frequency and high-voltage X-ray generator and high frequency inverter power supply.

(6.0kW, 60kHZ, 125kV)                                                           1set

3. Toshiba 9 inch image intensifier                                                 1 set

4. Medical million-pixels ultra-low illumination digital camera                           1 set

5. Digital Data Acquisition and Processing Workstation                               1 set

6. Imported dense grain grids                                                     1 set

7. Electric adjustable collimator                                                   1 set

8.19 inch LCD display                                                           2sets

9. Hand held controller                                                           2sets

10. Human graphical LCD touch screen                                            2sets

11. Foot brake for exposure                                                      2sets
