High Frequency Digital Radiography System,(85KW, 1000mA)

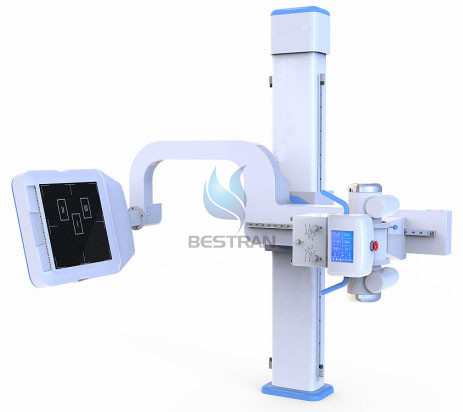

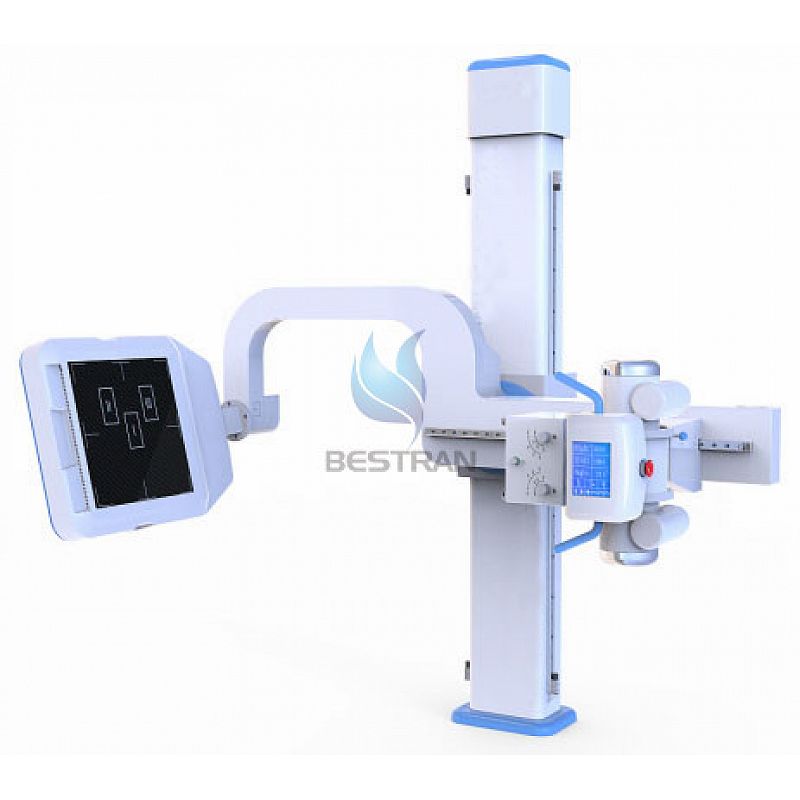

BT-XR13 High Frequency Digital Radiography System (85KW, 1000mA)
I. Application:This machine is applied to take radiography on every part of human body, such as head, limbs, chest, limbus and abdomen and etc.
II. Specifications
High-
frequency X-ray machine
Output power
85kW
Main inverter frequency
260kHz
X-ray tube
(IAE)
Dual-focus X-ray tube
Small focus:0.6 Large focus:1.2
Output power
35/85 kW
Anode Thermal Capacity
210kJ(300kU)
Thermal capacity
1280kJ
Anode Angle
12°
Speed of rotating anode
10,000rpm
Tube Current
10mA- 1000mA
Tube voltage
40-150kV
mAs
1-1250mAs
Exposure Time
0.0005-10s
AEC
Yes (Option)
Digital Image System
Digital Detector
(Thales)
Field of view
17”*17”
Pixel
3K*3K
Ultimate spatial resolution
3.7LP/mm
Pixel size
148um
Output grayscale
16bit
Imaging time
9s
Image Workstation
Acquisition module
-Gigabit network acquisition
-Adaptive image enhancement processing
Image information management
Dicom image transmission
Dicom film printing
Dicom image storage
(hard disk, compact disk)
Mechanical structure and performance
U-arm
Vertical movement range
≥1250 mm(motorized control)
Focus-screen movement range
1000mm-1800mm(motorized control)
Rotation range
-40°-+130°(motorized control)
Detector rotation
90°
X-ray tube ratation
180°
Photography table
(Optional)
Table size
2000mm*650mm
Table height
≤740mm
Transverse movement
200mm(electromagnetic lock)
Longitudinal movement
100mm(electromagnetic lock)
Power supply
380V 50/60Hz
III. Standard Configurationt
No. |
Item |
Quantity |
1 |
Newly designed U-shaped frame |
1 |
2 |
X-ray tube assembly |
1 |
3 |
Combined high-frequency high-voltage X-ray |
1 |
4 |
17〞×17〞Digital flat |
1 |
5 |
24〞Gray scale medical LCD display |
1 |
6 |
Colored LCD touch screen control box |
1 |
7 |
Electric box |
1 |
8 |
Image post-processor (with image processing software) |
1 |
9 |
Collimator |
1 |
IV. Feature
1.Amorphous silicon flat detector, use the advanced manufacturing technology with super stability
2.The detector can move with large scale of 17”×17” effective detection area.can meet all kinds of parts to shoot.
3.The electric lift and rotatable newly designed U-shaped frame can meet the photographic requirements of different standing and lying positions. The U-shaped design can make the operation much more convenient and flexible.
4.The leading domestic high power compact high frequency X-ray generator and high frequency power inverter makes the machine much more compact and more convenient without the extra high-voltage generator and cable.
5.Newly designed photographic bed used specially for the U-shaped arm X-ray machine. The bed floating and electromagnetic lock design makes it convenient for the accurate position of the lying patient.
6.Specially designed working station for DR adopts all-digital intelligent touchable LCD control system which is graphic and real color. This system makes the operation easier and more convenient.
7.Apply different photographic parameters according to the human characteristics, such as multi-site, multi-position, muti-body shape, adult and children etc. The parameters can be modified and stored at will and make the operation more convenient.
8.The high quality high frequency high-voltage X-ray generator and high frequency power inverter can produce high-definition and good contrast images by high quality radiation and low dose.
9.The application of the KV and MA digital closed-loop control technology and the real time control of the microprocessor ensure the accuracy and repeatability of the dose.
10.It provides more than 1200 APR preset program
11.Support Dicom 3.0 convenient to connect with PACS system to print and transmission.
12.Two control modes for Mechanical movement: close-table control, hand-remote control, Cell compartment control, it can easily, flexibility and quickly operated.
13.Image Workstations
Image processing system: Photo processing software, X-ray synchro Control software, motion control software Image post-processing: tissue equilibrium, W/L adjustment,Gamma correction, interest district, reversed phase, noise reduction, smooth, sharpen,pseudo color, Edge extraction, shadow compensation, filter neuclear, single window,dual-window, four windows, movement, right rotated 90°, left rotated 90°, level mirror image, vertical mirror image, magnifying glass, image zooming, reset, layer information, label character, drawing label, length measurement, angle measurement, rectangular length, rectangular area, elliptic length, elliptic area
V. Options
1.BT-XA04 Intelligent All-Directions Mobile Table
(2000×650×740mm, Longitudinal movement: 200mm, Horizontal movement: 100mm)
