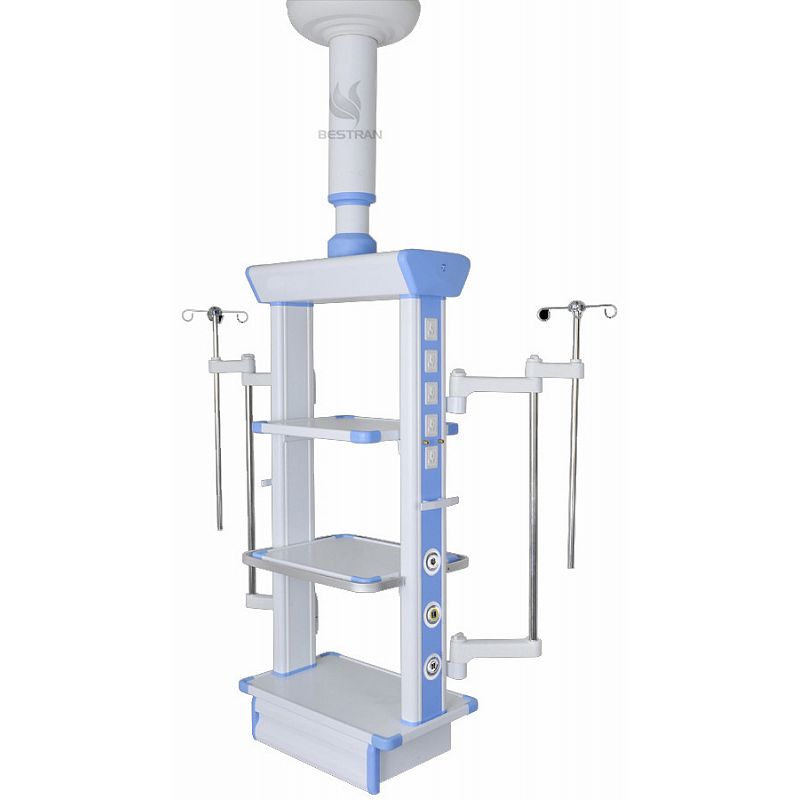

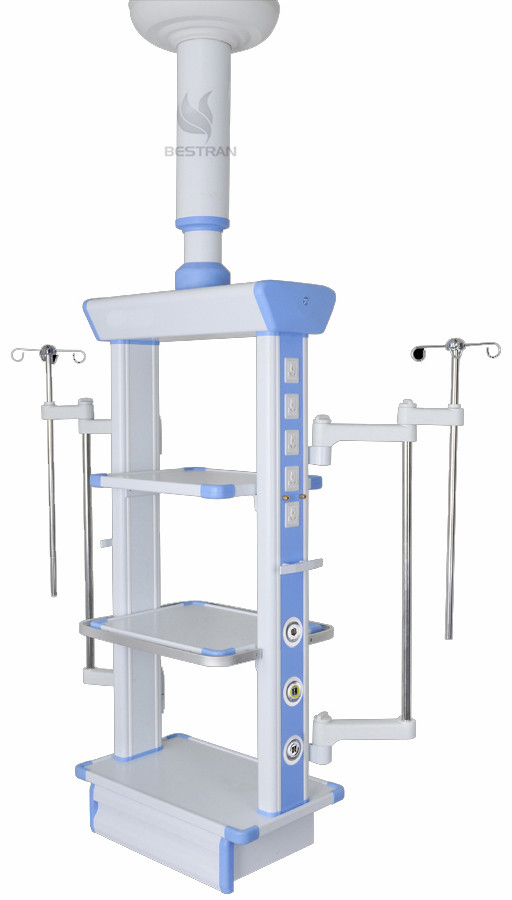

Eletric rotary endoscope pendant
Eletric Rotary endoscope pendant,height adjustable
BT-YOH400A
1)Power supply: AC220V, 50HZ; AC110V, 60HZ
2)Electric lift arm, lifting stroke 300mm
3)Horizontal arm and functional box horizontal rotation angle 340 °
4)The rotary joint has oxygen balloon expandable isolation brakes, just hold down the brake button on the device to easily rotate, release the button to secure the device no drift;
5)Weight loading: 100-200kg;
6)Instrument platform: three layers (height adjustable); rounded bumper design.
7)The gas terminal interface standard configuration: oxygen 2pcs, suction 2pcs;
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
8)Electrical outlet: 8 pcs (220V / 10A);
9)Potential ground terminal: 2pcs;
10)The network interface: RJ45 1pc;
11)Drawer: 1pc;
12)Infusion pump rack 1pc;
13)The main material: high-strength aluminum alloy;
14)The surface treatment using imported high-voltage electrostatic powder spray;
15)Ceiling-mounted, high stability;
BT-YOH400A
1)Power supply: AC220V, 50HZ; AC110V, 60HZ
2)Electric lift arm, lifting stroke 300mm
3)Horizontal arm and functional box horizontal rotation angle 340 °
4)The rotary joint has oxygen balloon expandable isolation brakes, just hold down the brake button on the device to easily rotate, release the button to secure the device no drift;
5)Weight loading: 100-200kg;
6)Instrument platform: three layers (height adjustable); rounded bumper design.
7)The gas terminal interface standard configuration: oxygen 2pcs, suction 2pcs;
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
8)Electrical outlet: 8 pcs (220V / 10A);
9)Potential ground terminal: 2pcs;
10)The network interface: RJ45 1pc;
11)Drawer: 1pc;
12)Infusion pump rack 1pc;
13)The main material: high-strength aluminum alloy;
14)The surface treatment using imported high-voltage electrostatic powder spray;
15)Ceiling-mounted, high stability;
