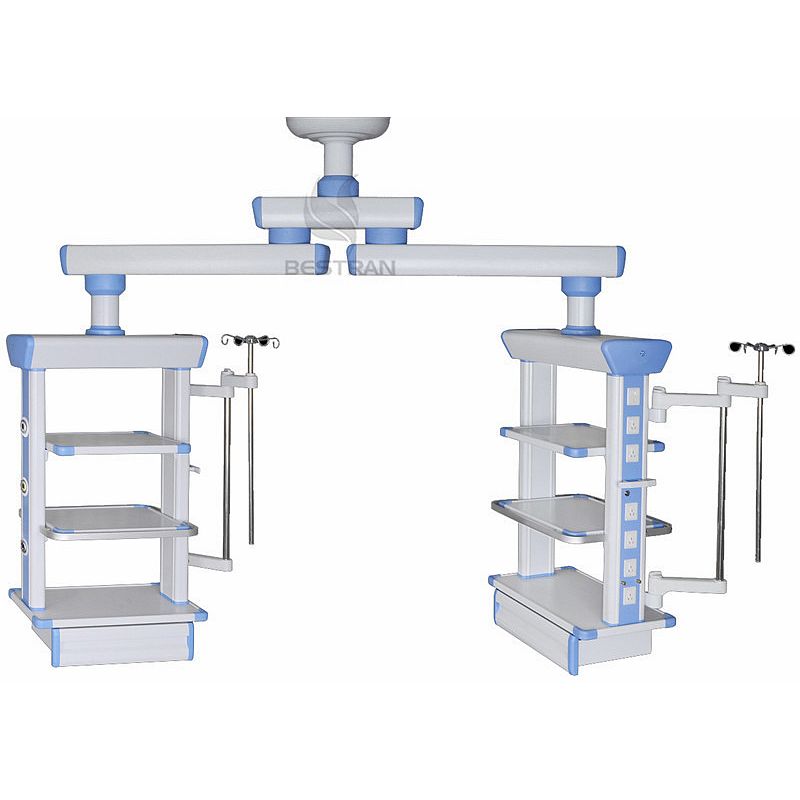

Double Arm Electric Surgical Pendant
Double Arm Electric Surgical Pendant
BT-400
1)The activity range of Horizontal arm :( radius) 1000mm, horizontal arm and functional box can be simultaneously rotated, each horizontal rotation angle 340 °;
2)The rotary joint has oxygen balloon expandable isolation brakes, just hold down the brake button on the device to easily rotate, release the button to secure the device no drift;
3)The gas terminal interface standard configuration: oxygen 1pc, suction 1pc; air 1pc
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
4)Instrument platform:three layers (height adjustable); round bumper design., each weight load 30KG
5)Weight loading: 150kg;
6)Power supply: AC220V, 50HZ; AC110V, 60HZ
7)Electrical outlet: 6 pcs (220V / 10A);
8)Potential ground terminal: 2pcs;
9)The network interface: RJ45 1pc;
10)Drawer: 2pcs,1pc for wet section, 1pc for dry section
11)Syringe pump rack 1pc, infusion pump rack 1pc
12)The main material: high-strength aluminum alloy;
13)The surface treatment using imported high-voltage electrostatic powder spray;
14)Ceiling-mounted, high stability;
BT-400
1)The activity range of Horizontal arm :( radius) 1000mm, horizontal arm and functional box can be simultaneously rotated, each horizontal rotation angle 340 °;
2)The rotary joint has oxygen balloon expandable isolation brakes, just hold down the brake button on the device to easily rotate, release the button to secure the device no drift;
3)The gas terminal interface standard configuration: oxygen 1pc, suction 1pc; air 1pc
A. Different colors and shapes, with anti-pick wrong function;
B. more than 20,000 times mating cycles;
C. using the secondary seal, with three states (on, off, pull), can carry air service;
4)Instrument platform:three layers (height adjustable); round bumper design., each weight load 30KG
5)Weight loading: 150kg;
6)Power supply: AC220V, 50HZ; AC110V, 60HZ
7)Electrical outlet: 6 pcs (220V / 10A);
8)Potential ground terminal: 2pcs;
9)The network interface: RJ45 1pc;
10)Drawer: 2pcs,1pc for wet section, 1pc for dry section
11)Syringe pump rack 1pc, infusion pump rack 1pc
12)The main material: high-strength aluminum alloy;
13)The surface treatment using imported high-voltage electrostatic powder spray;
14)Ceiling-mounted, high stability;
