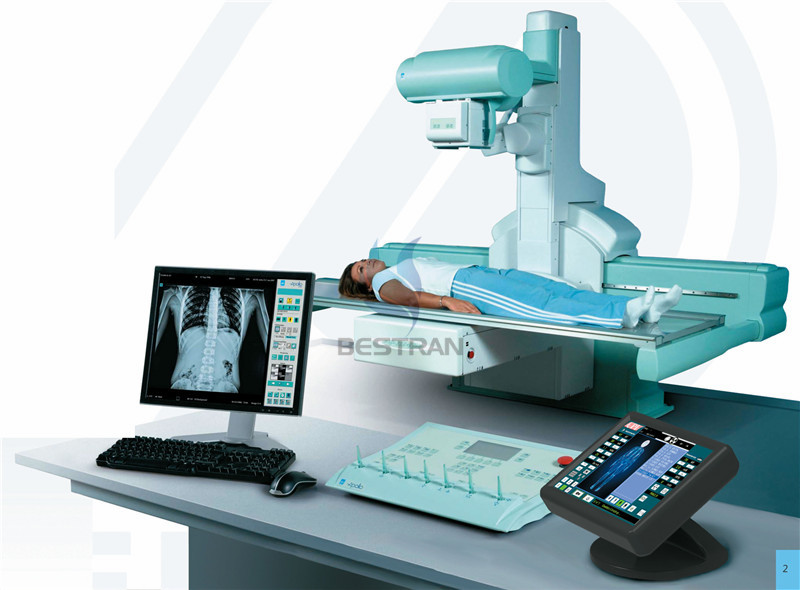

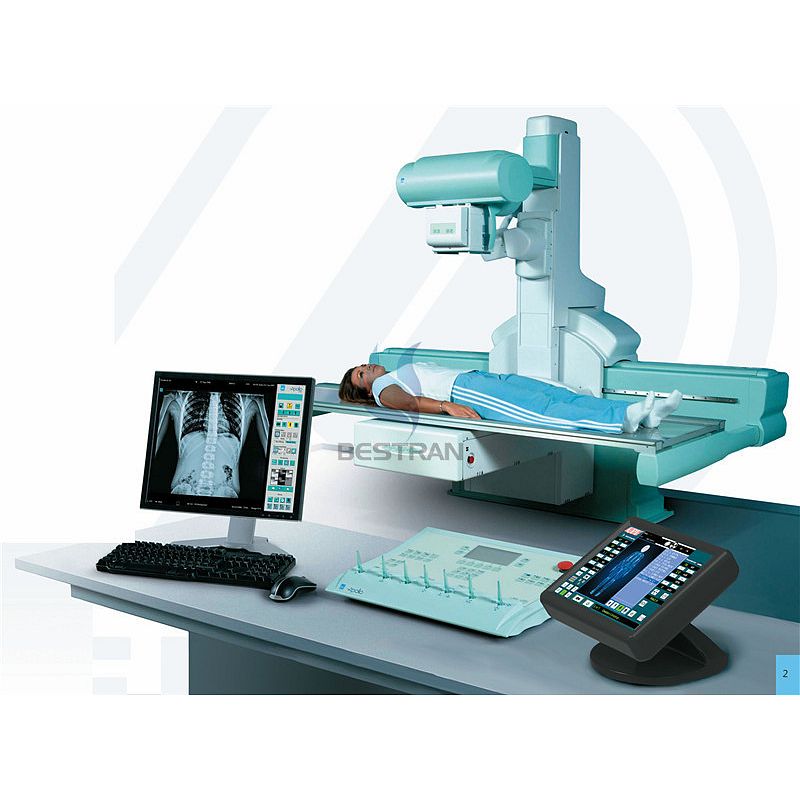

Digital Radiography & Fluoroscopy System（Dynamic Flat Panel Detector For R/F)

Digital Radiography & Fluoroscopy System（Dynamic Flat Panel Detector For R/F)

Model:BT-XF09

Power supply
Voltage: 380V±38V
Frequency: 50Hz±1Hz
Capacity:≥85kVA
Internal Resistor: ≤0.11Ω
Power Output: 65kW
Inverter Frequency: 200kHz

Radiography
Tube Voltage:40kV~150kV
Tube Current:10mA~800mA
Exposure time:1.0ms~6300ms
Control interface:Touched LCD Screen

Fluoroscopy
Tube Voltage:40kV~125kV
Tube Current:Continuous fluoroscopy:0.5mA~6mA,Pulse fluoroscopy 0.5~20mA
Automatic brightness for fluoroscopy IBS:Automatic brightness tracking, multiple settings beforehand
