Vertical pressure steam sterilizer

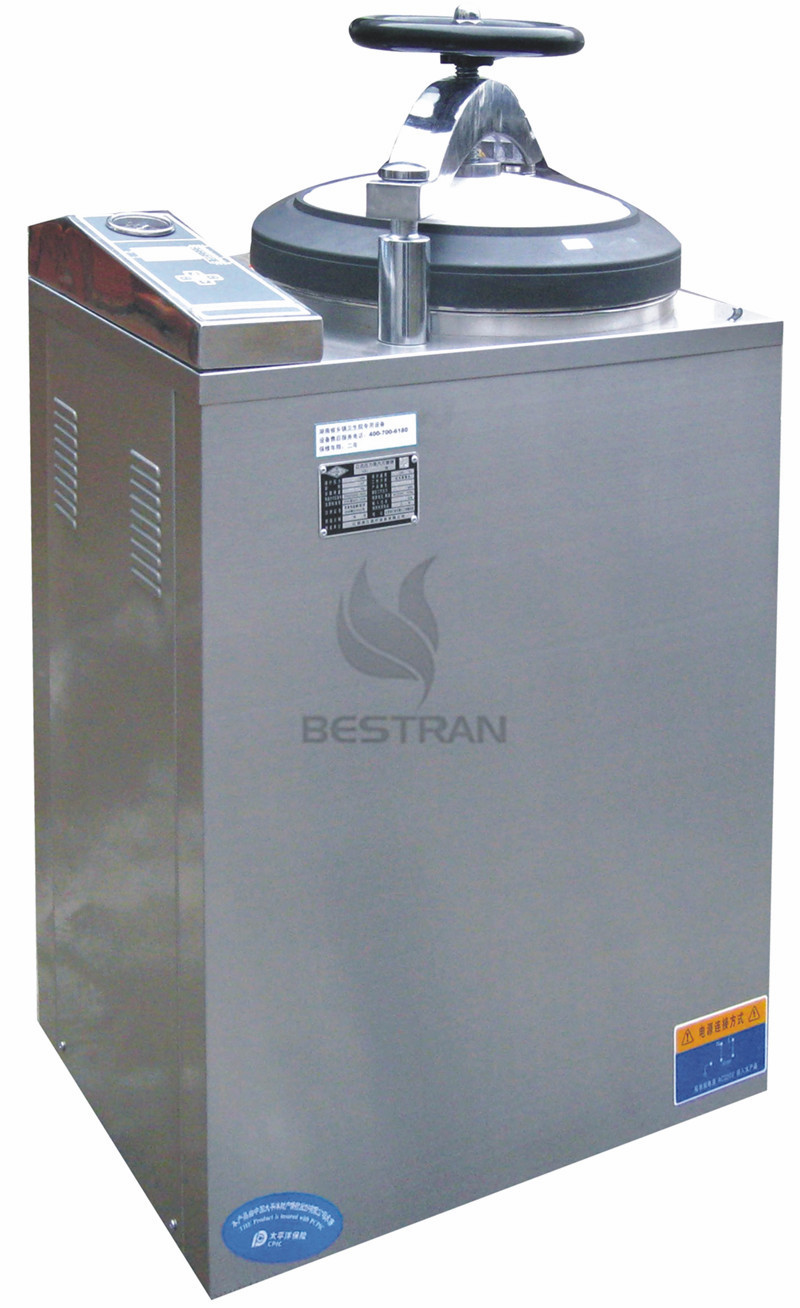

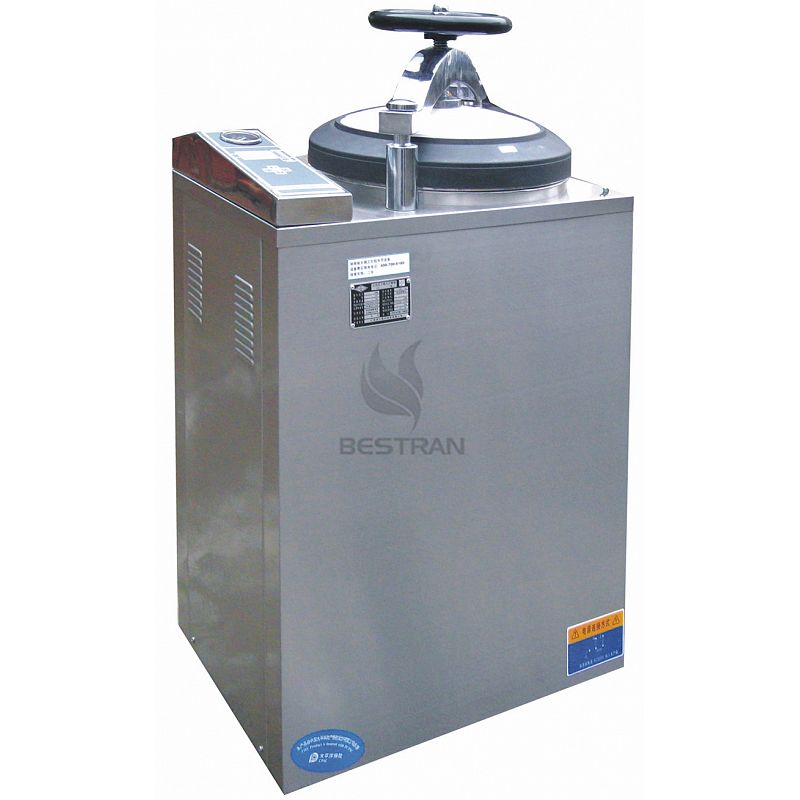

ELECTRIC-HEATED VERTICAL STEAM STERILIZER
(Fully automatic microcomputer)
Characteristics:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Automatically controlled by computer
5.Digital display of working status,touch of key
6.Over temperature&over pressure auto-protection
7.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry
8.Self-inflating type seal
9.Safe protection of water lacking
10.The drying system is optional,which can be equipped according to the customers' request
11.Automatically shut off with beep reminding after sterilization
12.With two stainless steel sterilizing baskets
Technical Data:
|
Technical Data |
BT-35HG |
BT-50HG |
BT-75HG |
BT-100HG |
|
Chamber volume |
35L (φ318×450)mm |
50L (φ340×550)mm |
75L (φ400×600)mm |
100L (φ440×650)mm |
|
working pressure |
0.22MPa |
|||
|
Working temperature |
134℃ |
|||
|
Max working pressure |
0.23Mpa |
|||
|
Heat average |
≤±1℃ |
|||
|
Timer |
0～99min或0～99hour59 min |
|||
|
Adjustment of temperature |
0～134℃ |
|||
|
Power |
2.5KW/AC220V.50Hz |
3KW /AC220V.50Hz |
4.5KW /AC220V.50Hz |
|
|
Overall dimension |
600×410×1030mm |
650×410×1140 mm |
690×470×1140 mm |
730×510×1270 mm |
|
Transport dimension |
730×500×1170 mm |
730×500×1290 mm |
760×550×1290 mm |
820×600×1380 mm |
|
G.W/N.W |
96Kg/ 77Kg |
102Kg/ 83Kg |
120Kg/98Kg |
135/110Kg |
