Table top steam sterilizer

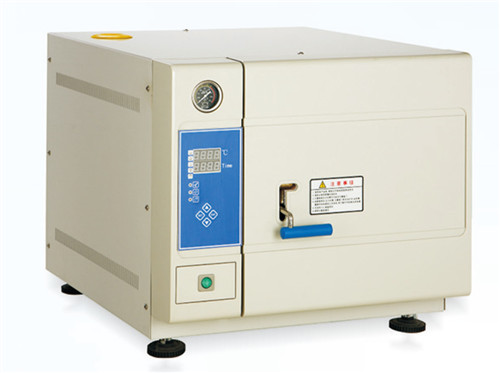

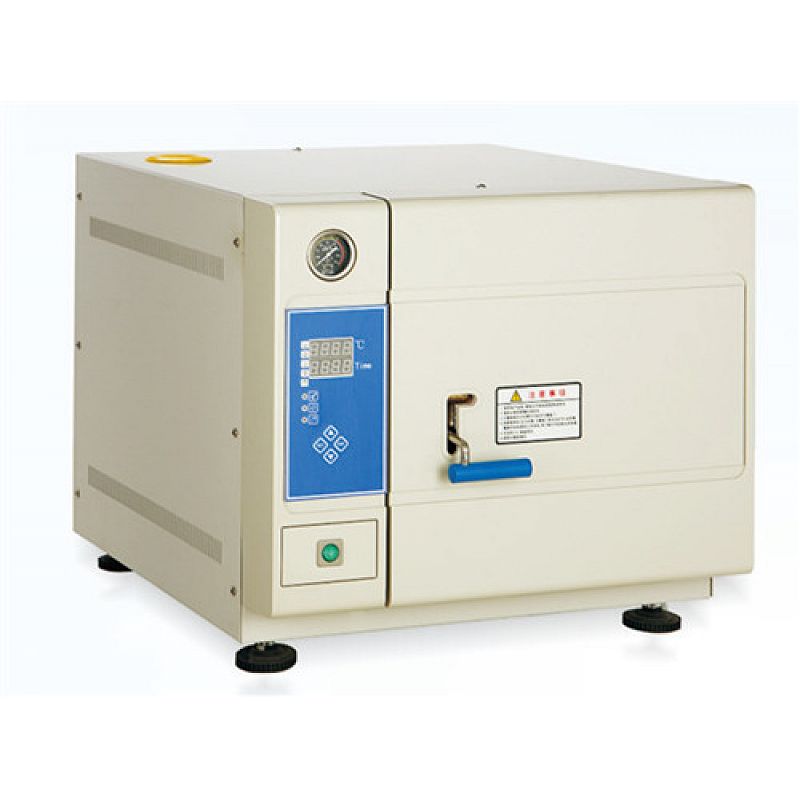

TABLE TOP STEAM STERILIZER
fully automatic microcomputer type

Characteristics

1.For 4~6 minutes rapidly sterilizing.

2.Digital display of working status,touch type key.

3.With 3 fixed cycles of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.

4.The whole process of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.

4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5.Exhaust the cool air automatically.

6.Safe protection of water lacking.

7.Door safety lock system.

8.With four stainless steel sterilizing plates.

9.The chamber of the sterilizer is made of stainless steel.

10.Automatically shut off with beep reminding after sterilization.

11.With drying function.


Technical data:

MODEL TECHNICAL DATA

BT-XD35D

BT-XD50D

Sterilizing chamber volume

35L

(φ300×500 mm)

50L

(φ340×550 mm)

Working pressure

0.22Mpa

0.22Mpa

Working temperature

134℃

134℃

Adjustment  of

temperature

105-134℃

105-134℃

Timer

0-99 min

0-99 min

Heat average

≤ ± 1℃

≤ ± 1℃

Power

2.7 KW / AC220V 50Hz

Sterilizing plate

400×200×30 mm

(4piece)

500×250×30 mm

(4piece)

Dimension

730×550×510 mm

770×600×540 mm

Package dimension

810×680×650 mm

880×730×700 mm

G. W/N.W

90/73 kg

105/86 kg
