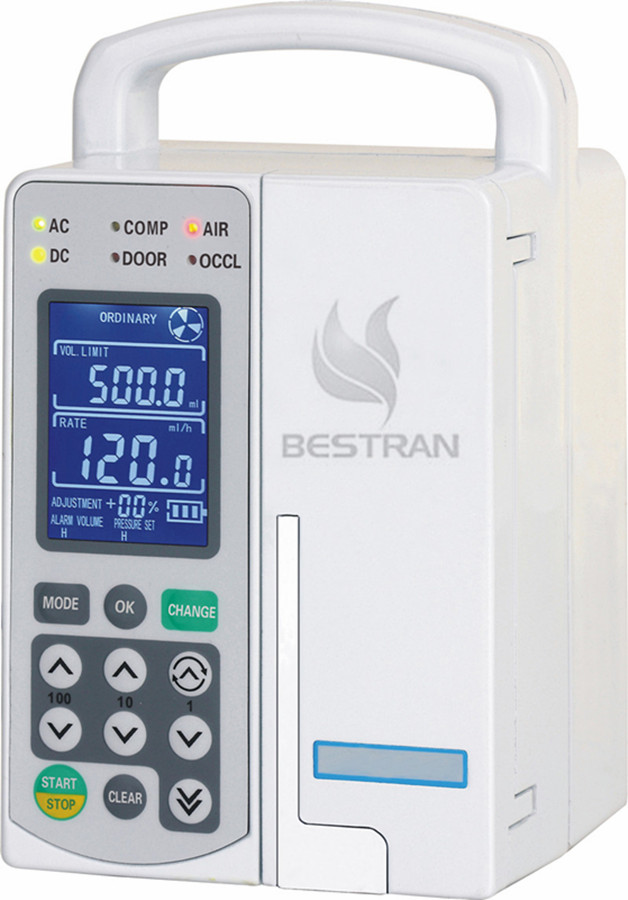

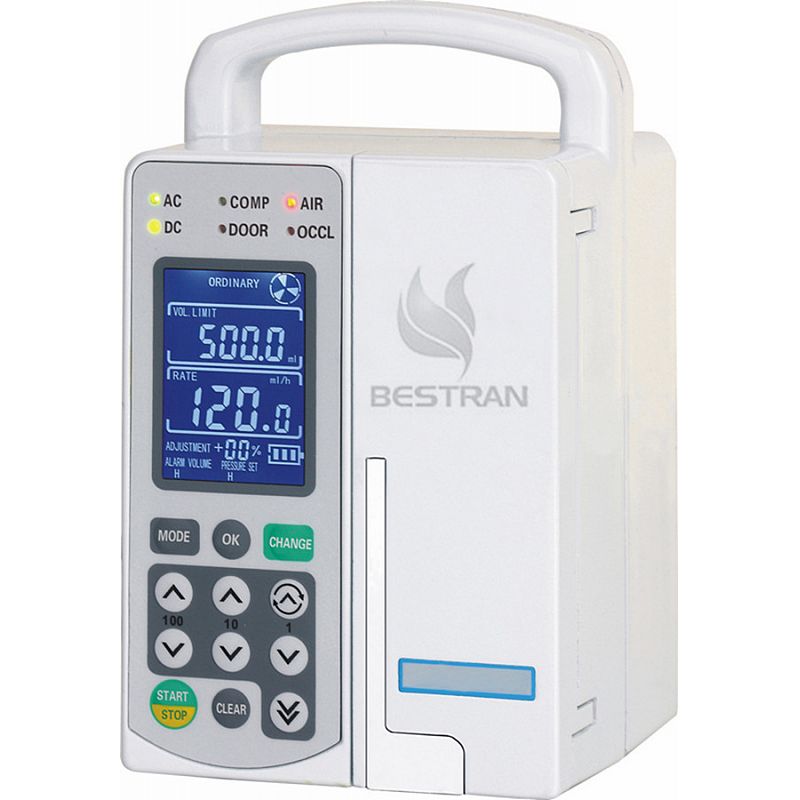

Single-Channel Infusion Pump
Single-Channel Infusion Pump
BT-IP100
1) Flow Rate Range 0.1-1000Ml/h
2) Matched Tube Type Match all types(PVC), The special tube should contact supplier
3) Adj. Infusion Range 999Ml
4) Infusion Precision ±3%(Adj.)
5) KVO Speed 1-3Ml/h
6) Beep & Led Alarms Power switch/occlusion/air in tube/door open/infusion finished/low battery/no operate/tube error installed/ no medicine liquid/tube spoilage
7) Drop Ctl Precision Drop Precision ±1%(Speed≤360Ml/h)
8) Drop Scan Sensor IR
9) Air Scan Sensor Ultrasonic
10) Pressure Range 30Kpa-160Kpa (High, Middle, Low Adj.)
11) Beep Adj.Range High, low
12) Ac Power AC100V-240V±10% 50Hz-60Hz
13) Insider Battery NI-MH Battery(12V): Infusion time≈4hours with battery
14) Lithium cell(12V): Time≈6-12hours with battery
15) Power consumption Less than 18VA
16) Security Classification Class I, BF type
17) Working Condition Temperature±5°C-+40°C Humidity 20%-90%
18) Purge Yes
19) Ml/h: drop/min Auto Change
20) Dimension 148*108*210mm
21) Weigh (kg) 2.3kg
