Product Description

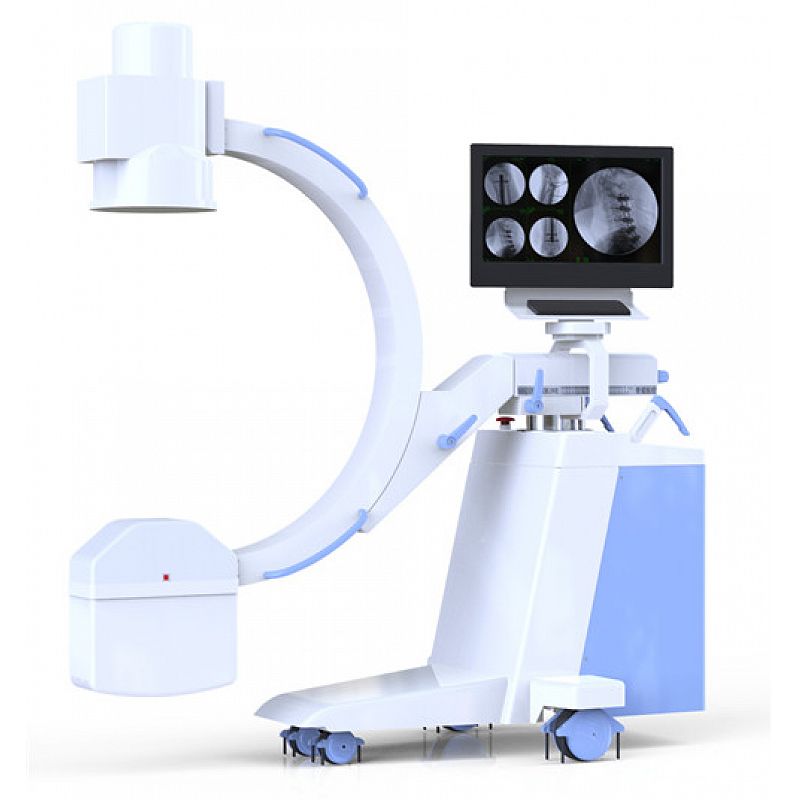

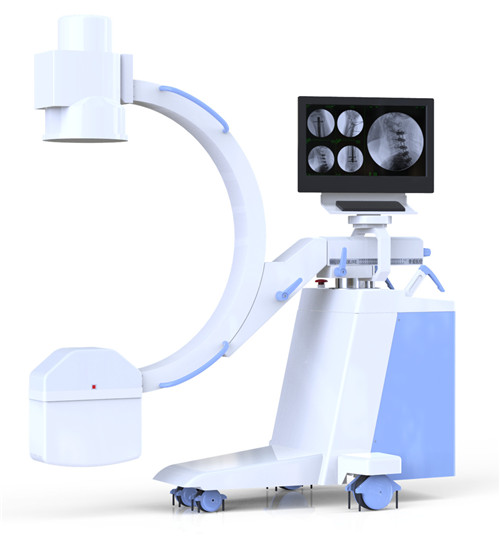

High frequency Mobile C-arm System

Model:BT-XC04

Usage:

Orthopedics: restore bone translocation, reset, fixing

Surgery: taking foreign bodies out of the body, cardiac catheterization, implantable pacemakers, interventional treatment, some of angiography and local photography etc.

Features:

1. New integrated design of TV system and mainframe, it does not need to connect electric cable, so the operation is more convenient.

2. High-quality combined HF-HV X-ray generator with our high voltage cable, it reduces loss and the quality of x-ray and image are good.

3. Electric rotating lead piece iris beam limiting device, it can satisfy multi-angle and multi-direction anatomical display.

4. The machine adopts imported image intensifier, matching with high-definition and high-resolution CCD and progressive scan display system, which matches with image system better.

5. With the perspective KV, MA automatic tracking feature, the image brightness and definition are automatically set at optimal function.

6. Graphical colorfully LCD touchable screen console interface, the operation is convenient and intelligent.

7. Unique hand-held remote controller, the doctor can operate it a far distance, so it’s more convenient.

Configurations:

1. New integrated C-arm mainframe one set

2. Combined high-frequency high-voltage X-ray generator and high-frequency power supply

(3.5kW, 40 kHz, 110kV) one set

3. imported 9 inch image intensifier one set

4. Imported ultra-low illumination CCD radiography one

5. High-definition progressive output CCU control system one set

6. Imported dense grain grids one set

7. Electrical adjustable beam limiting device one set

8.14-inch high-definition medical dedicated monitor one

9. Unique hand-held controller one set

Performance and Parameter:

Category	Items	Content
Electrical performance	High frequency inverter power supply	Power:3.5KW Main inverter frequency: 40 kHz
	Perspective max rated capacity for fluoroscope	Tube current 8 mA Tube voltage 110 kv
	Automatic fluoroscopy	tube voltage 40 kv~110kv,adjust automatically tube current : 0.3mA~~4mA adjust automatically
	Manual fluoroscopy	tube voltage 40 kv~110kv, continuous tube current : 0.3mA~~4mA continuous
	Pulse fluoroscopy	tube voltage 40 kv~110kv, continuous tube current : 4.1mA~~8mA continuous
	Photography tube voltage, tube current mAs	40KV~110KV, 20~63mA, 1~125 mAs
	Plate holder size	200mmx250mm(8”x10”) or 250mmx300mm(10”x12”)
X-ray tube	X-ray tube special for high frequency	large focus:1.5, mall focus :0.3 Anode thermal capacity: 35kJ (47 kHu) Tube thermal capacity: 650kJ (867 kHu)
Imaging system	Image intensifier	Imported 9 inch image intensifier
	CCD photography	Imported ultra-low illumination CCD radiography
	Monitor	Center definition is 1000 lines and frequency for picture refresh is 75Hz.
	CCU (central control)	HD progressive output, continuous adjustable recursion, many images storage, upright image, horizontal image, positive & negative image, image patching, LIH (last image freeze), OSD (monitor display).
Structure and performance	Direction wheel and main wheel	Direction wheel can rotate in any direction, and main wheel can rotate in ±90°.
Structure and performance	C-arm	The up and down electrical stroke of pillar is 400mm. Monitor rotating angles ≥300° Forward and backward movement:200mm; Revolution around horizontal axis : ±180°; Revolution around vertical axis: ±15°, distance from focus to screen: 960 mm; C-arm open distance: 760mm C-arm arc depth: 640mm; Slipping on orbit : 120°(+90°~-30°)
