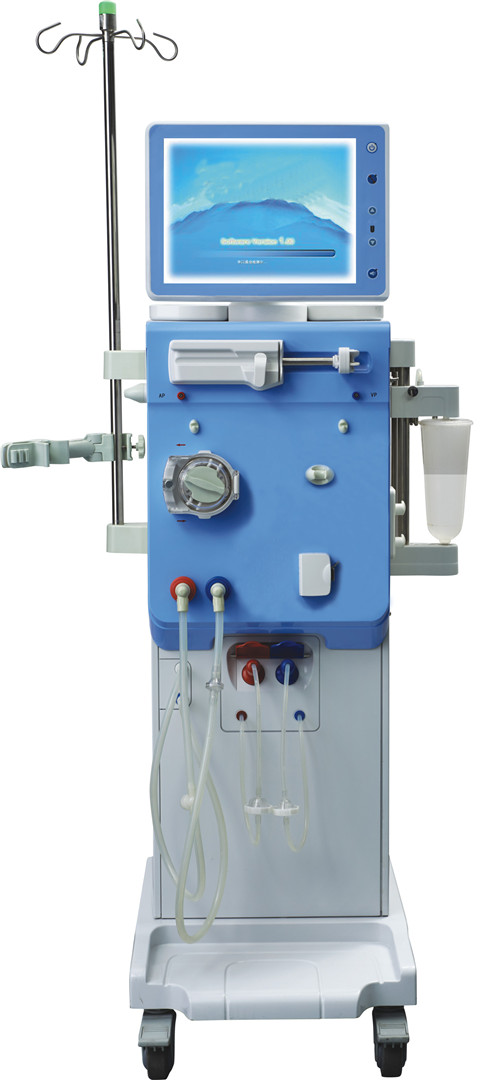

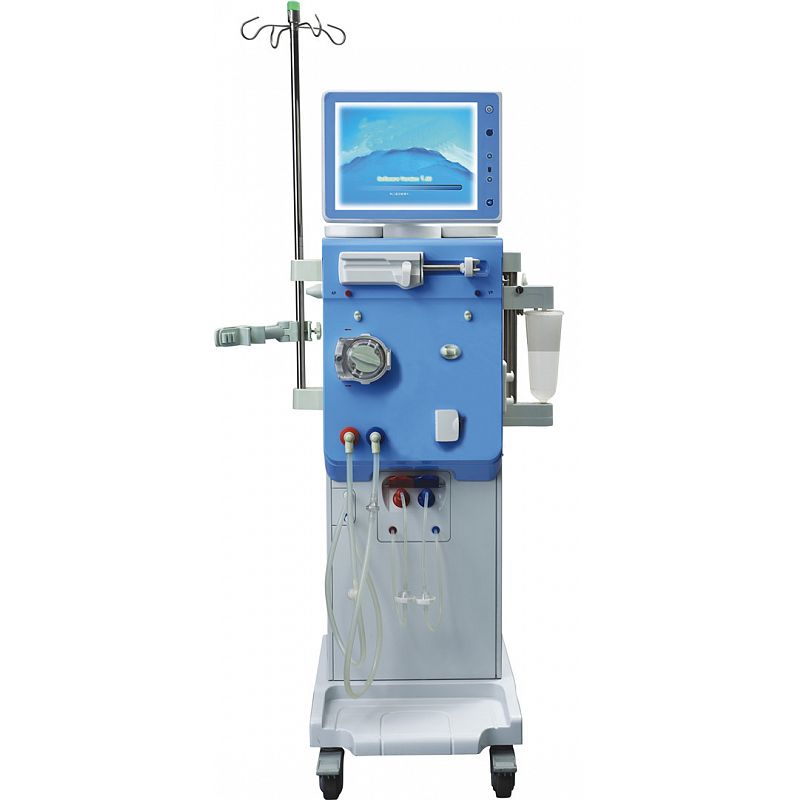

Hemodialysis equipment
Hemodialysis equipment
Model: BT-DM01
| Treatment Mode: HD ,IUF,Sequenital dialysis, HP |
| Dimensions(mm): 1460*490*715 |
| Net weight: Aprox.85kg |
| Power supply: AC 100~240V ,47-63Hz |
| VP :-700~+800mmhg,Accuracy ±5mmhg |
| AP :-700~+800mmhg,Accuracy ±5mmhg |
| TMP :-700~+800mmhg,Accuracy ±5mmhg |
| Blood flow :0~700ml/Min,Accuracy:±10mL/min |
| Dialysate flow:0,100mL/min~1000mL/min,±5% |
| Dialysate temperature : 33℃~40℃,Accuracy±0.5℃ |
| Dialysate Conductivity: 12.0 mS/cm~18.0mS/cm,Accuracy ±0.1mS/cm |
| Water Pressure range:0~8.0 bar |
| Water Temperature range:5~35℃ |
| Heparin Pump flow:0~10mL/h |
| Rapid injection Rate :10~1800 mL/h |
| Heparin Syringe size:10mL. 20mL,30mL,50mL |
| Air Detector:detecting≧0.02ml bubbles or≧0.0003ml continuous tiny bubbles |
| Blood Detect:Optical test |
| Blood leak monitor: detecting blood leak≥0.35ml/min(HCT 32%) |
| Decalcifiction :Rinse,Citrate Sodium or Glacial Acetic Acid |
| Thermal Disinfection :Hot water or Citrate Sodium (>93℃) |
| Chemical Disinfection:Sodium hypochlorite or peracetic acid |
| Blood Pressure:0mmHg~300mmHg |
| Resolution:1mmHg |
| To ensure measurement accuracy of blood pressure(adult):40mmHg~245mmHg |
| Adult Pulse Monitoring:30bpm~220bpm |
| Monitoring Error:±3bpm or reading ±2% |
| Well-designed user interface LCD touch screen |
| multi-language system |
| Connector:Ethernet,RS232/RS485,USB |
| Back-up battery supply power 40 mins after eletricity off |
Optional Modules：
Blood pressure monitor
Bicarbonate cartidge
