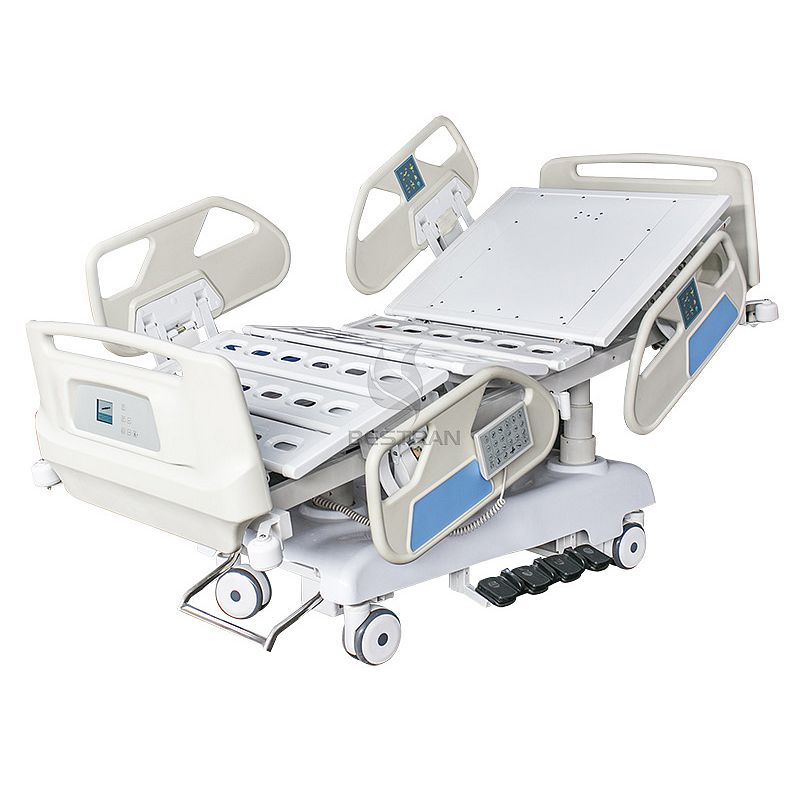

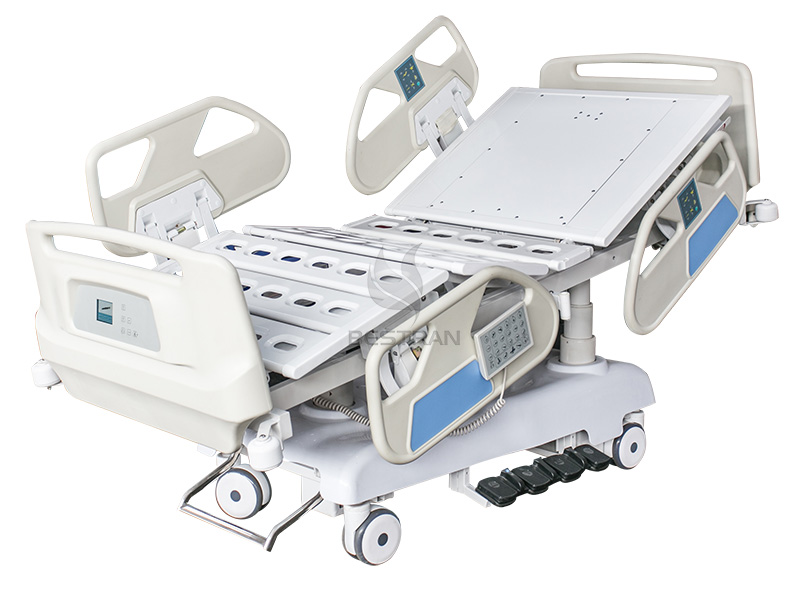

7-Function Electric Bed with weighing system
BT-AE031

Features:
1) Overallsize (L*W*H):2230*1050*520-920mm, platform size:1960*900mm
2) Frame: steel, treated by sand-balsting and electrostatic powder-coating
3) Headboard/footboard:ABS,Detachable
4) Side rail: Detachable, ABS
5) Rail controller: embedded on side rail at head side
6) Handset controller: movable
7) Nurse controller: embedded on footboard
8) Motor: Linak motor from Denmark,with backup batteries
9) Manual CPR handles at head side

10) Backrest for x-ray, electric panel made in America

11) Castors: four Central-controlled silent wheels, φ150mm

12) Four foot pedals at each side:all functions can be operated by the pedals on both side
13) Plastic bumpers at each corner
14) Angle indicators: embedded on side rail for backrest, Trendelenburg and anti-Trendelenburg
15)Weight load: static safe load 400kg, dynamic safe load: 170kg
16)Standard accessories:I.V pole 1pc, IV pole holes 4pcs, Drainage hooks 2pcs

7-function:
1) Backrest max upward angle: 70°
2) Footrest max upward angle: 30°
3) Height adjustment: 450-700mm
4) Trendelenburg: 12°
5)Anti-trendelenburg: 12°
6) Right turning: 17°
7) Left turning: 17°
