High Frequency Mobile Digital Radiography System

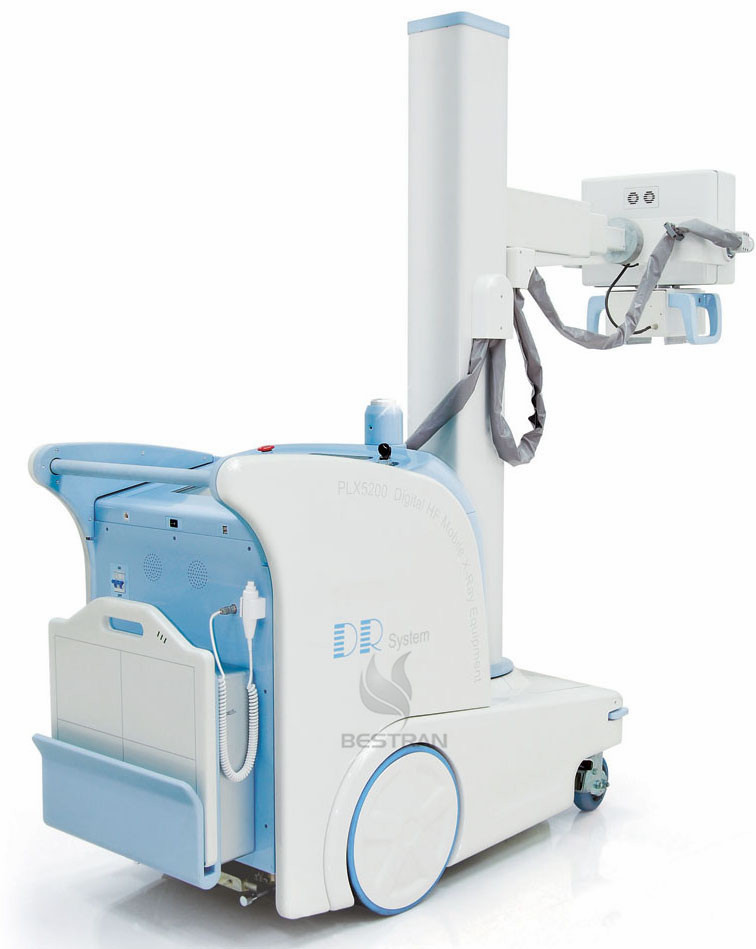

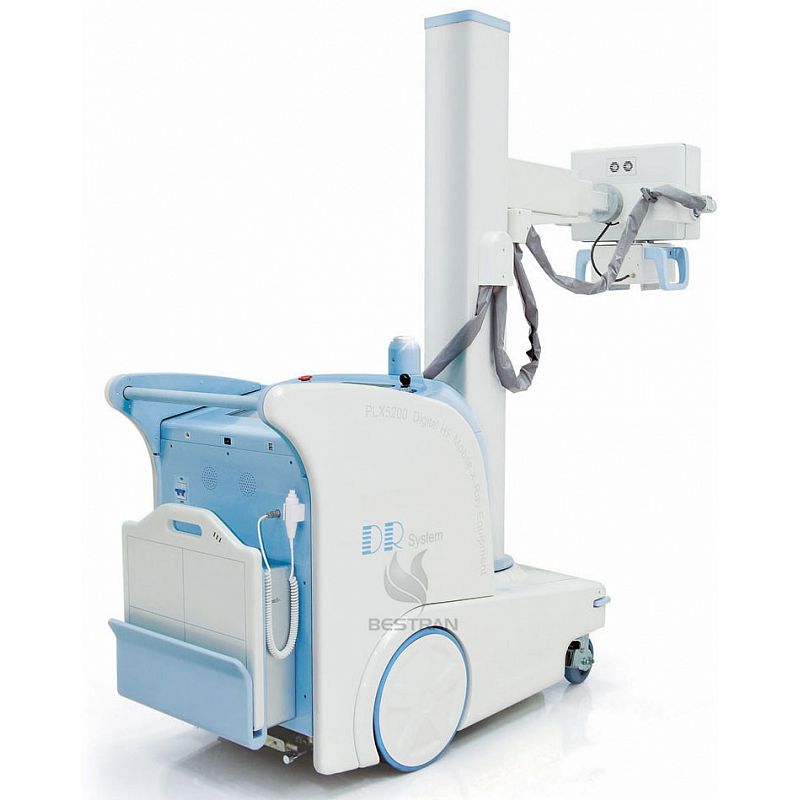

BT-XS06 High Frequency Mobile Digital Radiography System



I. Application

This unit is high frequency combined digital X-ray radiography medical diagnostic equipment, it is used in radiography department, orthopedics, wards, emergency room, operation room, ICU, etc. It can satisfy the requirement of parts of body such as head, limbs, chest, spine, lung, stomach.

II.Specification

Type

Item

Spec

High frequency X-ray

Max output power

25kW

Main Inverter Frequency

60kHz

X-ray tube

Focus

0.6/ 1.3mm

Rotation anode speed

3000rpm

Heat capacity

900kJ (1200kHU)

Tube current

200mA

Tube voltage

40-125kV

mAs

0.4-360mAs

Digital image system

Digital detector

Detector

Amorphous silicon detector

scintillator

Cesium Iodide

View

14″×17″

Pixel

3K×3K

Max spatial resolution

3.5Lp/mm

Pixel size

144μm

Output gray-scale

16bits

DQE

66%

Workstation

Acquisition module

Gigabit nets collection

Image processing model

Built-in international advanced Enhance module

parameters chosen according to particular part

Image information management

Dicom Storage

Dicom Print

Dicom transmission

Physical construction

performance

Distance from floor to focus

Max:195cm; Min:80cm

Distance from focus to pillar

Max:125cm; Min:75cm

X-ray Tube components can rotate

around the telescopic boom axis

±90º

Collimator rotate around vertical axis

±90°

Rotation range of pillar

±180°

Power supply

220V   50/60Hz


III. Standard Configurationt

No.

Item

Quantity

1

High frequency and high voltage Combined X-ray generator

1

2

Portable flat panel detector

1

3

High quality IPC

1

4

Newly designed mobile pillar frame

1

5

Symmetric adjustable, wireless ranging rotatable collimator

1

6

Electric assistance drive system

1

7

Cable exposure hand brake

1

8

Wireless remote control exposure device

1

9

Parts

1


IV. Features

1. X-ray generator:

1. 25KW compact x-ray generator;

2. High frequency of 60Khz;

3. With high technology to reduce the radiation;


2. Unique Power supply way:

1. Supers capacitor to supply power in photography and durable life;

2. Li-Battery to supply power in mechanical movement;


3. Mechanical movement:

1. The horizon arm can be contracted freely;

2. The pillar has the electronic up and down movement; and be rotated 360 degree;

3. X-ray tube is rotary and moves left and right with 90 degree;

4. Collimator can be rotated left and right with 90 degree;

5. Comprehensive integration control drive


Software:

LCD touch screen operation panel to control the machine conveniently;
