CPAP system

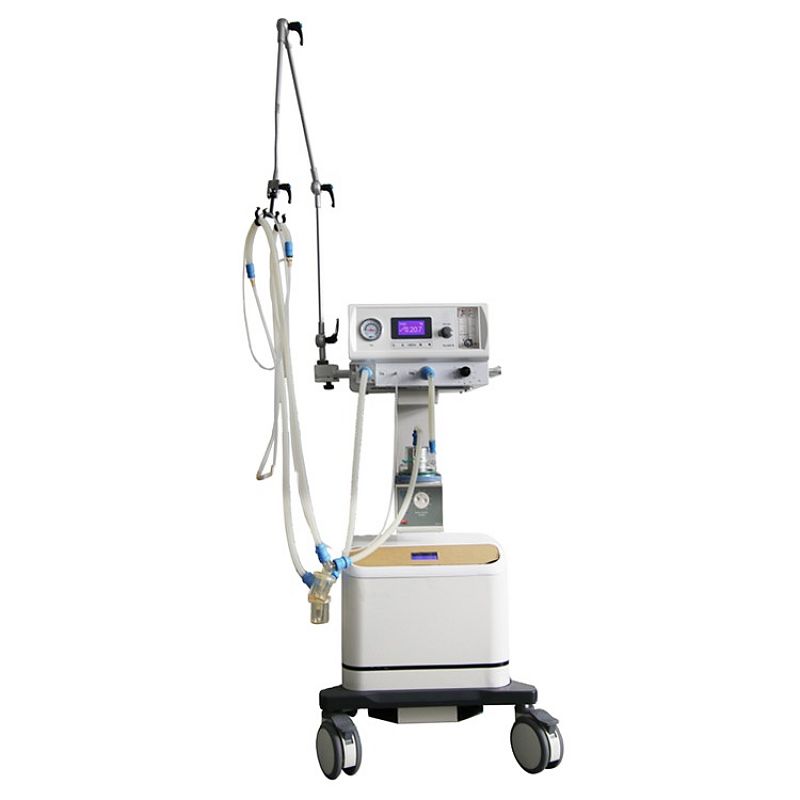

BT-NLF200C CPAP System



Application:

The CPAP System makes a good performance in Neonatal Intensive Care Units (NICU) and other departments. Perlong Medical CPAP System offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in ventilation is based on rich 23-year history of developing CPAP solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.


Trust Points

l Simplicity: easy to use, easy to move with 4 wheels.

l Choice: adapt the equipment to your patients and procedures freely

l Designed and manufactured by Perlong Medical with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for all baby patient around the world.

l Compact interface and screen display give you better operating experience.

l Over 2,000 units installed in the world.



Features

l 3.5” TFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

l Integration breathing circuit design, ensure easy operating and keep tidy.

l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;

l High precision O2 concentration detection function included.

l Built-in air and oxygen blender, ensure stable oxygen concentration.

l Stable and low noise air compressor create quiet work environment for doctors, can be used for 2-3 CPAP Systems together.



Safety

l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.





Specifications

Oxygen concentration

Adjusting range:21%-100%



Monitoring range:15%-100%

CPAP

Adjusting range:0cmH2O-15cmH2O



Monitoring range:0cmH2O-60cmH2O

Continuous flow

Adjusting range:2L/min-20L/min



Monitoring range:2L/min-20L/min

Air compressor

Continuous output flow:25L/min

Peak output flow:120L/min



Graphical display:



Oxygen concentration





Size

Wooden case packing sizeL 670*W 700*H 1410mm , GW90KG ; NW57.2KG



Alarm and protection

High oxygen concentration alarm

Low oxygen concentration alarm

19%-100%

15%-99%

Air and oxygen blender alarm

When any gas source lack



When differential pressure0.1mPa

Compression pump alarm



Excess temperature

Working conditions



Gas source

O2,AIR

Pressure

280kPa-600kPa

Voltage

100-240V

Power frequency

50Hz±1Hz

Input power

Main engine:25W

Air compressor:675W
