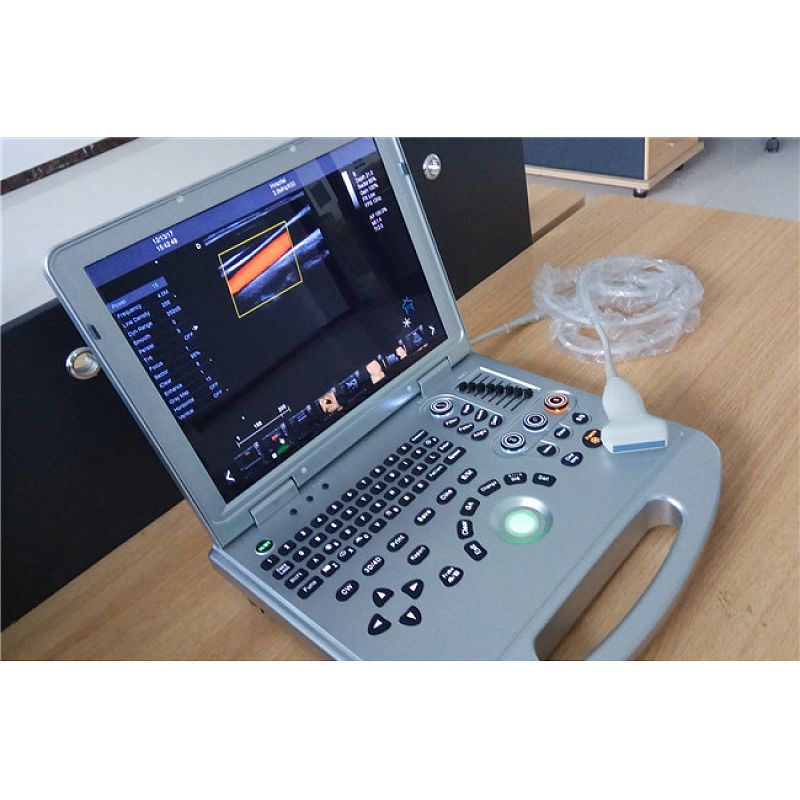

4D laptop color doppler ultrasound system
BT-UDC60PLUS (2.1V) laptop color doppler ultrasound system
1 |
Summary of main specifications and system of notebook color Doppler color Doppler ultrasound |
1.1 |
Notebook type all digital color Doppler ultrasound host |
1.2 |
Ultrasonic host operating system: Windows7 operating system |
1.3 |
Spectrum pulse Doppler |
1.4 |
Direction energy Doppler |
1.5 |
Real time three synchronization |
1.6 |
Space composite imaging: the requirement is 3 level, visual adjustable. |
1.7 |
Organized harmonic imaging technology |
1.8 |
4B imaging mode |
1.9 |
One key intelligent optimization |
1.10 |
Support multilingual user interface |
1.11 |
Monitor: 15 inches, high definition ultrasonic display liquid crystal display. |
1.12 |
Physical clipboard: save the image on the left side of the screen, which can be deleted directly. |
1.13 |
The system has the function of on-the-spot upgrade |
1.14 |
Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation. |
1.15 |

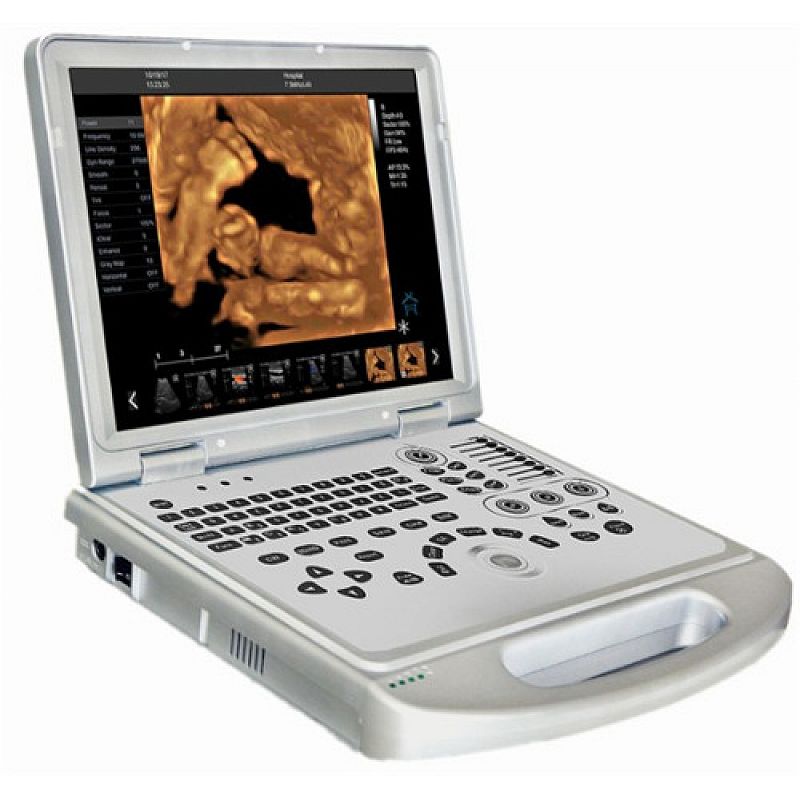

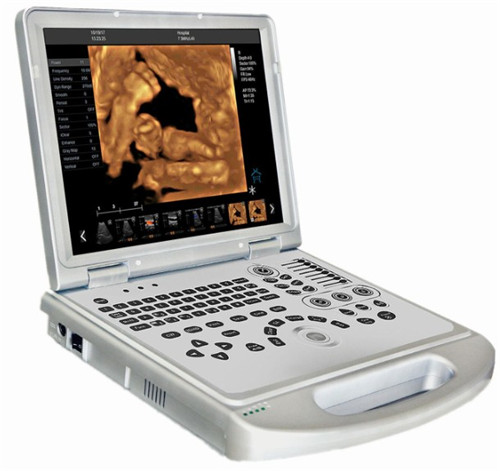

Support real-time 3D imaging function |
1.16 |
The probe interface is 1 |
2 |
probe |
2.1 |
Convex array probe: fundamental frequency 2.0MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz, five stage frequency conversion. |
2.2 |
Linear array probe: fundamental frequency: 6.0MHz/6.5MHz/7.5MHz/10.0MHz/12.0MHz, five stage frequency conversion. |
2.3 |
Transvaginal probe: fundamental frequency: 5.0MHz/6.0MHz/6.5MHz/7.5MHz/9.0MHz, five stage frequency conversion. |
2.4 |
Phased array probe: 2.1MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz, five stage frequency conversion |
2.5 |
Volume probe: 2.0MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz, five stage frequency conversion |
2.6 |
The above probe has harmonic frequency (providing picture proof). |
2.7 |
It can be selected according to customer needs: convex array probe, linear array probe, transrectal probe, micro convex probe, phased array probe, volume probe. |
2.8 |
Under each probe, there is a selection of specialist and viscera mode and rapid entry detection. |
3 |

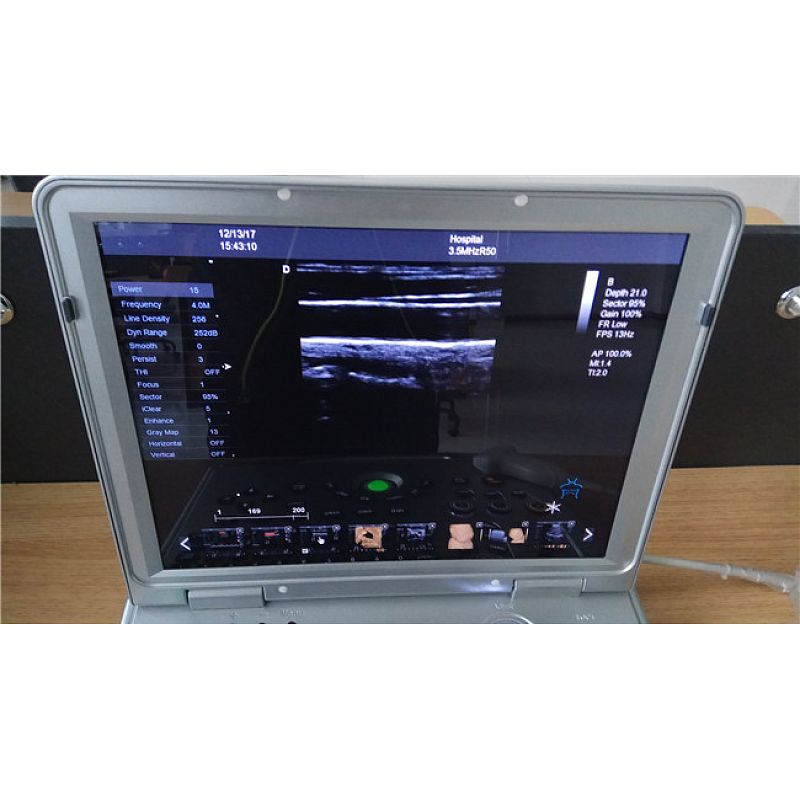

Two-dimensional imaging mode |
3.1 |
Gain: 0-100, step 2 visible adjustable |
3.2 |
TGC:8 segment adjustable |
3.3 |
Image optimization: visible and adjustable over 6 levels |
3.4 |
Dynamic range: 0-270dB 15 level visual adjustable |
3.5 |
False color: 7, visible and adjustable |
3.6 |
Smooth treatment: 8, visible and adjustable |
3.7 |
Edge enhancement: 8, visible and adjustable |
3.8 |
Sound power: 0-15, step 7%, visible adjustable |
3.9 |
Display depth: ≥320mm, |
3.10 |
Maximum focus number: 4 focal points, which can be moved throughout the whole process. |
3.11 |
Scan line density 256 visible tunable |
3.12 |
Gray scale: 1-16 level visible visible and adjustable |
3.13 |
Filtering, 3 kinds |
3.14 |
Scanning range, 50%-100% |
3.15 |
Frame correlation, 0-4 level, visible and adjustable |
3.16 |
The screen has 14 forms of real time display of voice power, probe frequency, dynamic range, pseudo color, grayscale and so on. |
4 |
Color imaging mode |
4.1 |
Color frequency: ≥7 frequency conversion, visible adjustable |
4.2 |
Color deflection: equipped with |
4.3 |
C afterglow 8, visible and adjustable |
4.4 |
Color map: 7, visible and adjustable |
4.5 |
Color reversal: adjustable |
4.6 |
B/C split screen synchronous display function: equipped with |
4.7 |
Color baseline: 7, visible and adjustable |
4.8 |
Color line density: adjustable |
5 |
Spectrum Doppler mode |
5.1 |
Sampling volume angle correction: -80 degree to 80 degree adjustable |
5.2 |
Sample volume: 0.5mm-48mm visually adjustable |
5.3 |
Frequency: ≥ 5, visible and adjustable |
5.4 |
Baseline: ≥7 adjustable |
5.5 |
Smooth: 8 files can be adjusted |
5.6 |
False color: 7 kinds of adjustable |
5.7 |
Maximum display blood flow measurement speed 25m/s, minimum resolvable blood flow measurement speed: 0.1mm/s |
6 |
Measurement and analysis function: |
6.1 |
General measurement distance, area, angle, time, slope, heart rate, velocity, acceleration, spectrum tracing, resistance index / pulsatility index, etc. |
6.2 |
Professional software package: abdomen, volume, ratio, obstetrics and Gynecology, small organs, carotid artery, Urology, orthopedics, peripheral blood vessels, heart. |
7 |
Graphic and text management system |
7.1 |
Host built in≥ 120G solid state hard disk to start fast and stable |
7.2 |
Movie playback: 600 frames |
7.3 |
Internal patient file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on. |
7.4 |
Report type 3 species |
7.5 |
One key fast report graphic and text management |
8 |

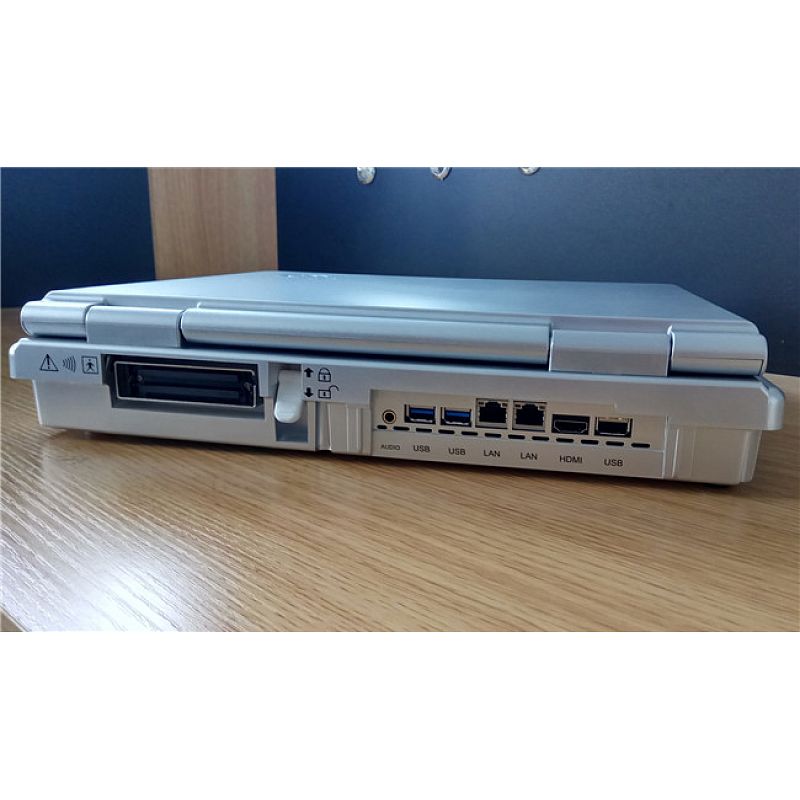

Interface |
8.1 |
USB interface: 3 |
8.2 |
Audio interface: 1 |
8.3 |
HDMI interface: 1 |
8.4 |
LAN interface: 2 |
9 |
To configure |
9.1 |
Trolley type full digital color Doppler ultrasound diagnostic system host 1 sets |
9.2 |
Probe: convex array probe (standard), high frequency probe (optional), Overcast probe (matching), cardiac probe (matching), volume probe (matching) |
9.3 |

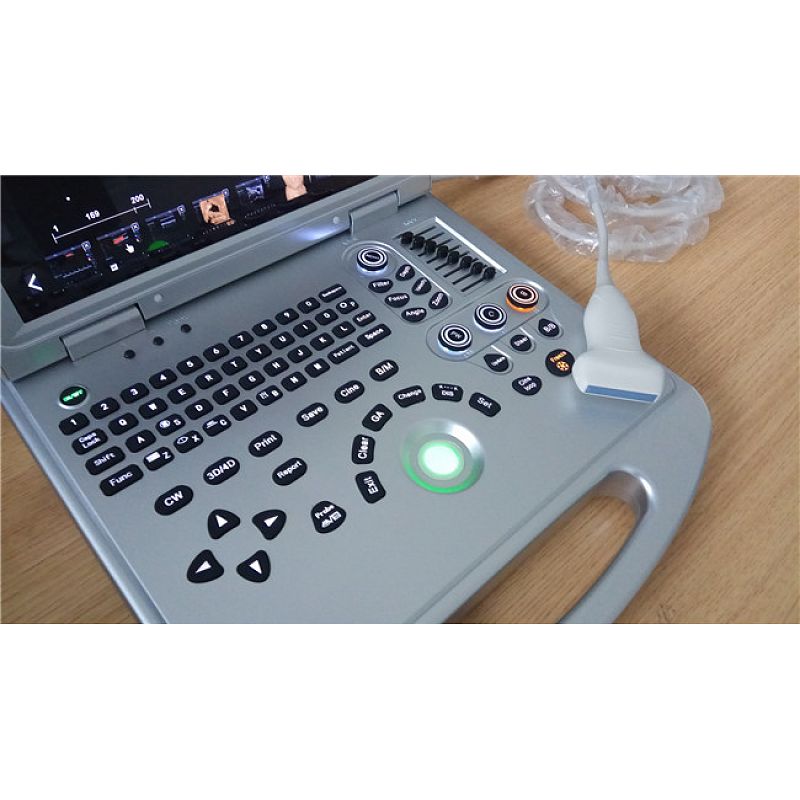

13 quick adjusting knobs |
10 |
Technology, after-sales service and other requirements |
10.1 |
After acceptance, the warranty is free for two years |
10.2 |
Manufacturer has ISO13485 certification and EU CE certification. |
